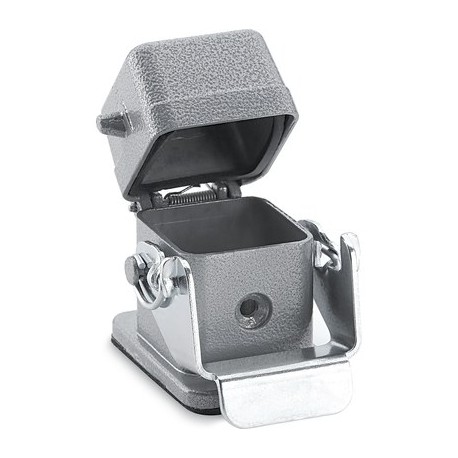

LAPP 44429015 44429015 EPIC H-A 3 MAGD LAPP EPIC H-A 3 MAGD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44429015 EPIC H-A 3 MAGD LAPP EPIC H-A 3 MAGD

44429015

44429015

EPIC H-A 3 MAGD

LAPP

10 Pcs.

EPIC H-A 3 MAGD

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 44429015 EPIC H-A 3 MAGD wall base housing offers a compact mounting solution for specialized industrial connector inserts. Wall bases are typically attached directly to enclosures or structural bulkheads to route pluggable connections cleanly into internal circuitry. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact metal housing for rectangular connectors is supplied with a seal and it is suitable for control systems.

  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • 1 lever
  • Metal cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Metal cover

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
