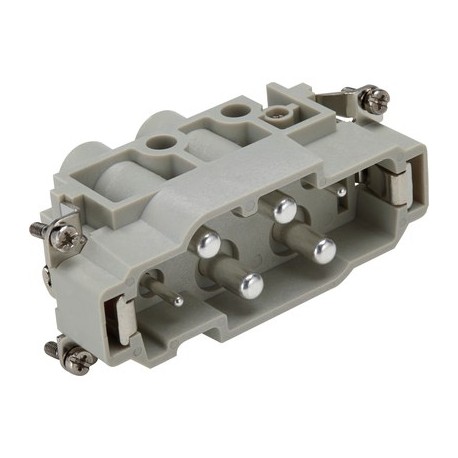

LAPP 44424043 44424043 EPIC K 4/2 SS LAPP EPIC K 4/2 SS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44424043 EPIC K 4/2 SS LAPP EPIC K 4/2 SS

44424043

44424043

EPIC K 4/2 SS

LAPP

10 Pcs.

EPIC K 4/2 SS EPIC® K 4/2

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 44424043 EPIC K 4/2 SS functions as a hybrid contact insert for industrial connectors, combining power and control pathways within a single assembly. Mixed-media inserts allow engineers to streamline machine wiring by routing auxiliary signals alongside heavy load lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screw termination: 1.5 - 16.0 mm² (power contact)
  • Screw termination: 0.5 - 2.5 mm² (control contact)
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The combined insert is suitable for power and control and can be used, for example, in the area of recoverable energy and control systems.

Combination insert Power and Control

Benefits

  • Power and control in one connector insert
  • Best in combination with ÖLFLEX® SERVO

Application range

  • Mechanical engineering
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • 830 V Power
  • 400 V Control

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 80 A Power
  • 16 A Control

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 5 mOhm

Number of contacts

  • 4 + 2 + PE

Termination methods

  • Screw termination: 1.5 - 16.0 mm² (power contact)
  • Screw termination: 0.5 - 2.5 mm² (control contact)

Stripping length (mm)

  • 16 mm (Power)
  • 6 mm (Control)

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +125°C
