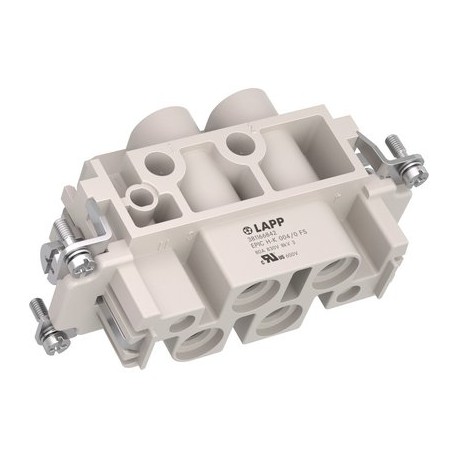

LAPP 44424041 44424041 EPIC K 4/0 SS LAPP EPIC K 4/0 SS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44424041 EPIC K 4/0 SS LAPP EPIC K 4/0 SS

44424041

44424041

EPIC K 4/0 SS

LAPP

10 Pcs.

EPIC K 4/0 SS EPIC® K 4/0

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 44420124 power contact insert handles heavy electrical loads within rugged industrial connector housings. Factory installation technicians depend on these robust inserts to supply stable high-amperage power to large motors and heavy machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screw termination: 1.5 - 16.0 mm² (power contact)
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The combined insert ensures a very high power output concentrated in a single insert and is ideal in combination with the ÖLFLEX SERVO cable.

Combination insert Power

Benefits

  • High power in one connector insert
  • Best in combination with ÖLFLEX® SERVO

Application range

  • Mechanical engineering
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • 830 V Power

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 80 A Power

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 5 mOhm

Number of contacts

  • 4 + PE

Termination methods

  • Screw termination: 1.5 - 16.0 mm² (power contact)

Stripping length (mm)

  • 16 mm (Power)

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +125°C
