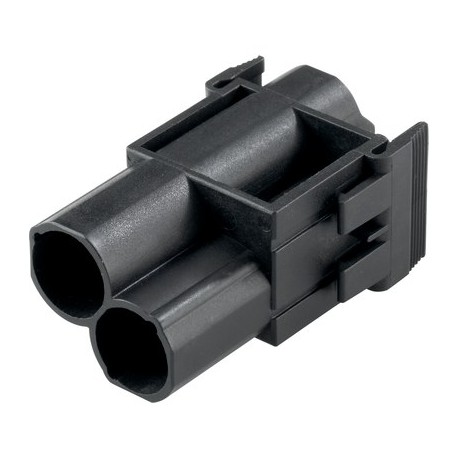

44424018 EPIC MC MCB HHC2 LAPP Modular MC MCB HHC2
44424018
44424018
EPIC MC MCB HHC2
LAPP
10 Pcs.
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Formed as a Lapp 44424018 EPIC MC MCB HHC2 modular connector, this power module manages high-current distribution inside heavy-duty industrial multi-pin assemblies. Industrial connector inserts organize multi-conductor power and signal paths within protective hoods and housings, ensuring safe power delivery across machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Crimp termination: 16 mm² ... 35 mm²
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Sensor-actuator connector chassis
More info
▲The power module ensures high currents for sufficient reservation of energy and contains the crimping contact that is resistant against vibrations.
- High current for sufficient power reserves
- Lever for rapid removal of the module
Benefits
- High current transfer
- The mix of different functions in one plug guarantees high flexibility
- Crimp connection for permanent vibration proof contacting
Application range
- Mechanical and plant engineering
- Robotics industry
- Control engineering
- Renewable energy
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 1000
Rated impulse voltage
- 8 kV
Rated current (A)
- 150
Pollution degree
- 3
Number of contacts
- 2
Termination methods
- Crimp termination: 16 mm² ... 35 mm²
Material
- PA6
Cycle of mechanical operation
- 500
Temperature range
- -40°C to +125°C
