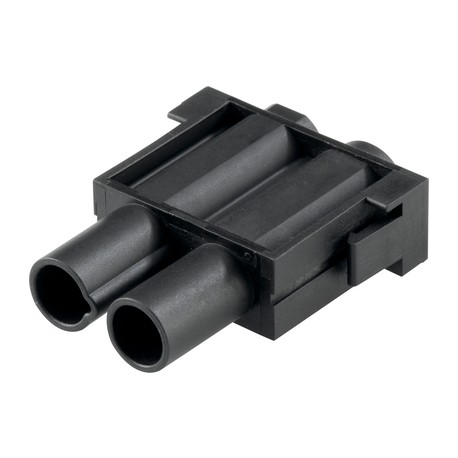

LAPP 44424013 44424013 EPIC MCB HC2 LAPP EPIC MCB HC2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44424013 EPIC MCB HC2 LAPP EPIC MCB HC2

44424013

44424013

EPIC MCB HC2

LAPP

10 Pcs.

EPIC MCB HC2 Power module: HC2

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 44424013 EPIC MCB HC2 LAPP EPIC MCB HC2 is a modular connector power module engineered to handle heavy electrical currents within industrial power distribution assemblies. High-current modules allow engineers to combine large-gauge power conductors with standard signal lines inside a single protective hood and housing structure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Crimp termination: 16.0 mm²
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The power module ensures a high current in one modular slot and combines a greater number of functions. It is suitable for robotics and control systems.

High current with only one module slot

Benefits

  • High current transfer
  • The mix of different functions in one plug guarantees high flexibility
  • Crimp connection for permanent vibration proof contacting

Application range

  • Industrial machinery and plant engineering
  • Robotics industry
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 1000

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 65

Pollution degree

  • 3

Number of contacts

  • 2

Termination methods

  • Crimp termination: 16.0 mm²

Material

  • PA6

Cycle of mechanical operation

  • 500

Temperature range

  • -40°C to +125°C
