View larger
Images are for illustrative purposes only. Please refer to data sheet for details

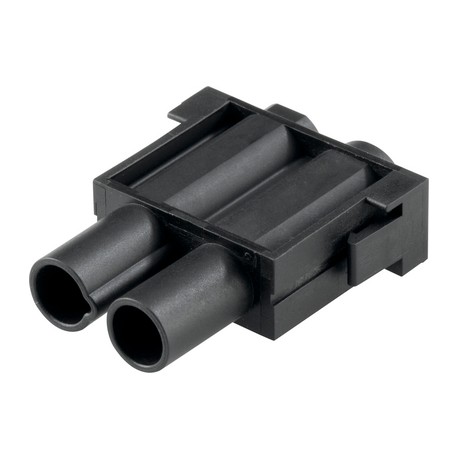

44424012 EPIC MCS HC2 LAPP EPIC MCS HC2
44424012
44424012
EPIC MCS HC2
LAPP
10 Pcs.
EPIC MCS HC2
Power module: HC2
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The power module ensures a high current in one modular slot and combines a greater number of functions. It is suitable for robotics and control systems.
High current with only one module slot
Benefits
- High current transfer
- The mix of different functions in one plug guarantees high flexibility
- Crimp connection for permanent vibration proof contacting
Application range
- Industrial machinery and plant engineering
- Robotics industry
- Control engineering
- Renewable energy
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 1000
Rated impulse voltage
- 8 kV
Rated current (A)
- 65
Pollution degree
- 3
Number of contacts
- 2
Termination methods
- Crimp termination: 16.0 mm²
Material
- PA6
Cycle of mechanical operation
- 500
Temperature range
- -40°C to +125°C
