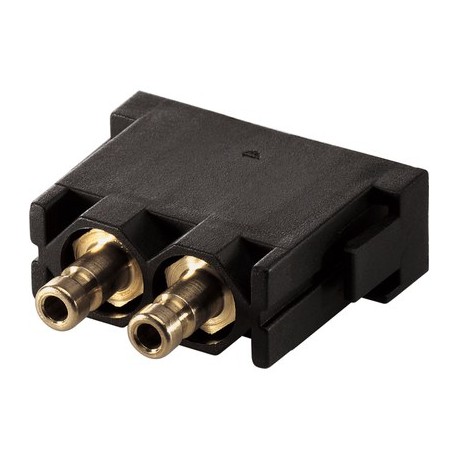

44424011 EPIC MCB V 2X4.0MM LAPP EPIC MCB V 2x4.0mm PNEU (10)
44424011
44424011
EPIC MCB V 2X4.0MM
LAPP
10 Pcs.
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 44424011 EPIC MCB V 2X4.0MM LAPP EPIC MCB V 2x4.0mm PNEU (10) serves as a modular connector pneumatic insert, allowing compressed air lines to run alongside electrical wiring in automated systems. Pneumatic modules snap directly into standard heavy-duty connector frames, consolidating electrical, data, and fluid connections into one drop-in unit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Plug-in connection: for hose with inner diameter 2.5 mm/4.0 mm
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
More info
▲The two-pole pneumatic module with valve is suitable for use in investment construction and can be used in temperature ranges from -20 to +100 degrees.
Pneumatic modules with valve for 2.5 und 4mm tubings
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Contacts
- Brass
Number of contacts
- 2
Termination methods
- Plug-in connection: for hose with inner diameter 2.5 mm/4.0 mm
Cycle of mechanical operation
- 100
Operating presure
- 8 bar
Testing presure
- 10 bar
Temperature range
- -20°C to +100°C
