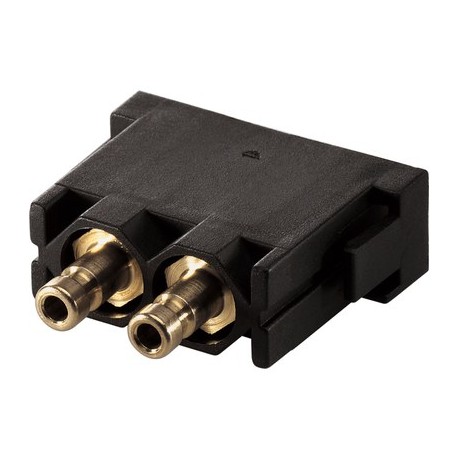

LAPP 44424010 44424010 EPIC MCS 2X4.0MM LAPP EPIC MCS 2x4.0mm PNEU (10) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44424010 EPIC MCS 2X4.0MM LAPP EPIC MCS 2x4.0mm PNEU (10)

44424010

44424010

EPIC MCS 2X4.0MM

LAPP

10 Pcs.

EPIC MCS 2x4.0mm PNEU (10) EPIC® MC Module Pneumatic 2pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 44424010 EPIC MCS 2X4.0MM LAPP EPIC MCS 2x4.0mm PNEU (10) is a modular connector pneumatic male insert designed to route fluid and air lines directly through heavy-duty industrial connector frames. This system allows technicians to bundle pneumatic feeds alongside electrical lines for streamlined machine maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Plug-in connection: for hose with inner diameter 2.5 mm/4.0 mm
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The two-pole pneumatic module with valve is suitable for use in investment construction and can be used in temperature ranges from -20 to +100 degrees.

Pneumatic modules with valve for 2.5 und 4mm tubings

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Contacts

  • Brass

Number of contacts

  • 2

Termination methods

  • Plug-in connection: for hose with inner diameter 2.5 mm/4.0 mm

Cycle of mechanical operation

  • 100

Operating presure

  • 8 bar

Testing presure

  • 10 bar

Temperature range

  • -20°C to +100°C
