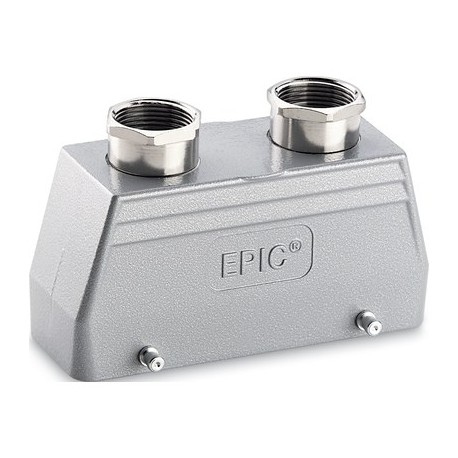

LAPP 44422020 44422020 EPIC H-B 24 TG 2XM32 ZW LAPP EPIC H-B 24 TG 2xM32 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44422020 EPIC H-B 24 TG 2XM32 ZW LAPP EPIC H-B 24 TG 2xM32 ZW

44422020

44422020

EPIC H-B 24 TG 2XM32 ZW

LAPP

5 Pcs.

EPIC H-B 24 TG 2xM32 ZW EPIC® H-B 24 TG 2X

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to provide robust environmental defense for high-density plug connections, the Lapp 44422020 EPIC H-B 24 TG 2XM32 ZW LAPP EPIC H-B 24 TG 2xM32 ZW functions as an industrial connector hood. Connector hoods organize incoming wiring routes and protect terminal blocks from external contamination in production facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing with pivots for a double lever and 2 direct cable entries is suitable for use in lighting and sound systems.

  • Non-slip ridges for comfortable disconnecting
  • For easy introduction of two cables
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Bolts for double lever
  • 2 straight cable entries
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
