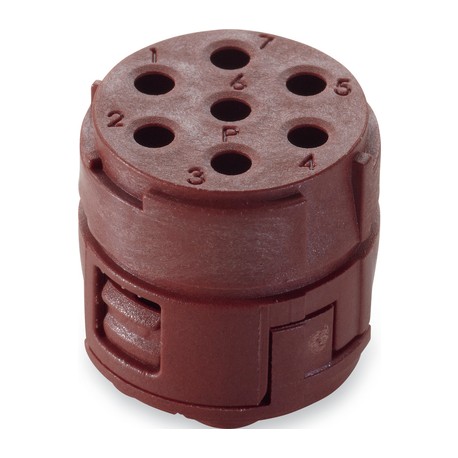

44420158 EPIC SIGNAL M23 7E BLMS LAPP EPIC SIGNAL M23 7E BLMS (5)
44420158
44420158
EPIC SIGNAL M23 7E BLMS
LAPP
5 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC Round
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 44420158 EPIC SIGNAL M23 7E BLMS contact insert establishes secure connection pathways for multi-conductor instrumentation cabling. Circular connector inserts ensure signal integrity and mechanical alignment within automated production lines and robotics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- according to IEC 61984: 150 V
- Crimp termination: 1.0 - 2.5 mm²
- Solder termination: up to 2.5 mm²
- UL File Number: E249137
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲EPIC® SIGNAL M23 Inserts 7 pole for M23 circular connector series
Made in Germany
Benefits
- Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 150 V
Rated impulse voltage
- 4 kV
Rated current (A)
- 18 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Gold-plated brass
Number of contacts
- 7
- 7*2mm contacts
Termination methods
- Crimp termination: 1.0 - 2.5 mm²
- Solder termination: up to 2.5 mm²
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
- UL File Number: E249137
Temperature range
- -25°C up to +125°C
