View larger
Images are for illustrative purposes only. Please refer to data sheet for details
44420156 EPIC SIGNAL M23 7E SLM LAPP EPIC SIGNAL M23 7E SLM (5)
44420156
44420156

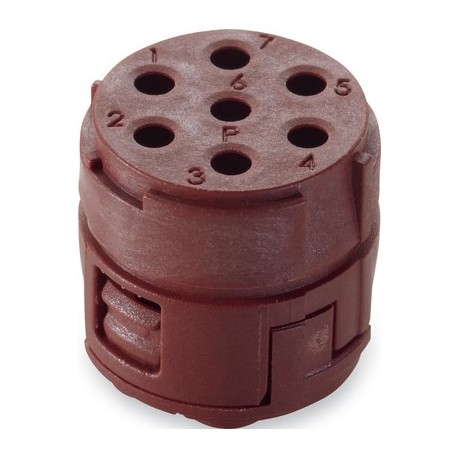

EPIC SIGNAL M23 7E SLM
LAPP
5 Pcs.
EPIC SIGNAL M23 7E SLM (5)
EPIC® SIGNAL M23 Inserts 7 pole
Connectors > Contact insert for rectangular connectors
EPIC Round
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲EPIC® SIGNAL M23 Inserts 7 pole for M23 circular connector series
Made in Germany
Benefits
- Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 150 V
Rated impulse voltage
- 4 kV
Rated current (A)
- 18 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Gold-plated brass
Number of contacts
- 7
- 7*2mm contacts
Termination methods
- Crimp termination: 1.0 - 2.5 mm²
- Solder termination: up to 2.5 mm²
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
- UL File Number: E249137
Temperature range
- -25°C up to +125°C
