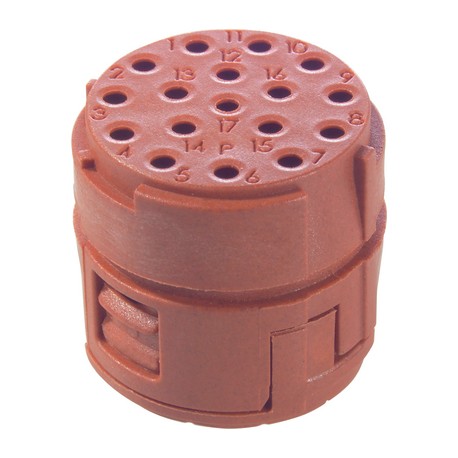

44420134 EPIC SIGNAL M23 17P B D-SUB LAPP EPIC SIGNAL M23 17P B D-SUB (5)
44420134
44420134
EPIC SIGNAL M23 17P B D-SUB
LAPP
5 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC Round
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a specialized contact insert for industrial connectors, the Lapp 44420134 EPIC SIGNAL M23 17P B D-SUB LAPP EPIC SIGNAL M23 17P B D-SUB (5) integrates multi-pole signal wiring into compact circular shells for motion control networks. Precision D-sub style pin configurations ensure dependable data exchange and sensor feedback in automated environments.
Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- according to IEC 61984: 50 V
- Crimp termination: 0.08 - 0.56 mm²
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲EPIC® M23 Inserts 17 pole for D-Sub contacts on reel for M23 circular connector series
- for D-Sub ribbon contacts
- for automated production with crimping machine
- Made in Germany
Benefits
- Efficient assembling due to the use of D-Sub contacts-on-reel
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 50 V
Rated impulse voltage
- 0,8 kV
Rated current (A)
- 4 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Partly gold-plated brass
Number of contacts
- 17
- 17*1mm D-Sub contacts
Termination methods
- Crimp termination: 0.08 - 0.56 mm²
Cycle of mechanical operation
- 50
Temperature range
- -25°C up to +125°C
