EPIC SIGNAL M23 12P B D-Sub

LAPP

5 Pcs.

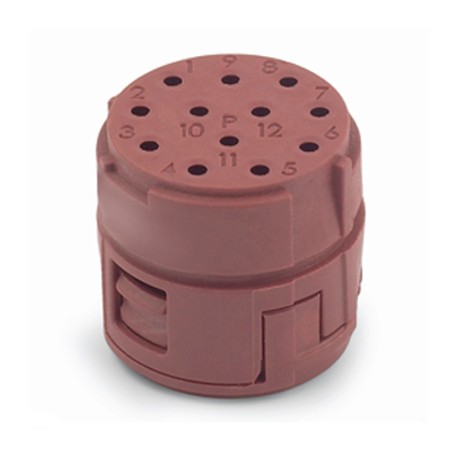

EPIC SIGNAL M23 12P B D-Sub (5) EPIC® SIGNAL M23 Inserts 12 pole D-Sub

Connectors > Contact insert for rectangular connectors
EPIC Round

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing a D-Sub style layout, the Lapp 44420126 EPIC SIGNAL M23 12P B D-Sub insert offers high-density pin connectivity for specialized industrial automation networks. Such specialized modules ensure dependable signal transfer within restricted spatial envelopes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • according to IEC 61984: 100 V
  • Crimp termination: 0.08 - 0.56 mm²
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

EPIC® M23 Inserts 12 pole for D-Sub contacts on reel for M23 circular connector series

  • for D-Sub ribbon contacts
  • for automated production with crimping machine
  • Made in Germany

Benefits

  • Efficient assembling due to the use of D-Sub contacts-on-reel

Application range

  • Plant engineering
  • Measurement and control technology
  • Apparatus construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • according to IEC 61984: 100 V

Rated impulse voltage

  • 1.5 kV

Rated current (A)

  • 4 A

Pollution degree

  • 3

Contact resistance

  • < 4 mOhm

Contacts

  • Partly gold-plated brass

Number of contacts

  • 12
  • 12*1mm D-Sub contacts

Termination methods

  • Crimp termination: 0.08 - 0.56 mm²

Cycle of mechanical operation

  • 50

Temperature range

  • -25°C up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
