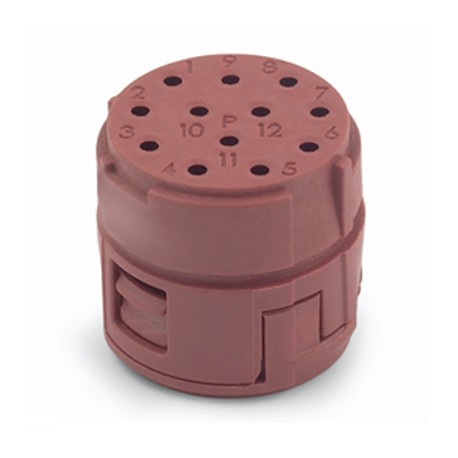

LAPP 44420124 44420124 EPIC SIGNAL M23 12P S D-Sub LAPP EPIC SIGNAL M23 12P S D-Sub (5) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44420124 EPIC SIGNAL M23 12P S D-Sub LAPP EPIC SIGNAL M23 12P S D-Sub (5)

44420124

44420124

EPIC SIGNAL M23 12P S D-Sub

LAPP

5 Pcs.

EPIC SIGNAL M23 12P S D-Sub (5) EPIC® SIGNAL M23 Inserts 12 pole D-Sub

Connectors > Contact insert for rectangular connectors
EPIC Round

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 44420124 EPIC SIGNAL M23 12P S D-Sub contact insert for industrial connectors enables high-density signal and data transfer within automated industrial environments. Technicians utilize this insert style inside sophisticated servo drives, robotics controllers, and instrumentation cabinets to maintain secure connections in confined spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • according to IEC 61984: 100 V
  • Crimp termination: 0.08 - 0.56 mm²
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

Benefits

  • Efficient assembling due to the use of D-Sub contacts-on-reel

Application range

  • Plant engineering
  • Measurement and control technology
  • Apparatus construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • according to IEC 61984: 100 V

Rated impulse voltage

  • 1.5 kV

Rated current (A)

  • 4 A

Pollution degree

  • 3

Contact resistance

  • < 4 mOhm

Contacts

  • Partly gold-plated brass

Number of contacts

  • 12
  • 12*1mm D-Sub contacts

Termination methods

  • Crimp termination: 0.08 - 0.56 mm²

Cycle of mechanical operation

  • 50

Temperature range

  • -25°C up to +125°C
