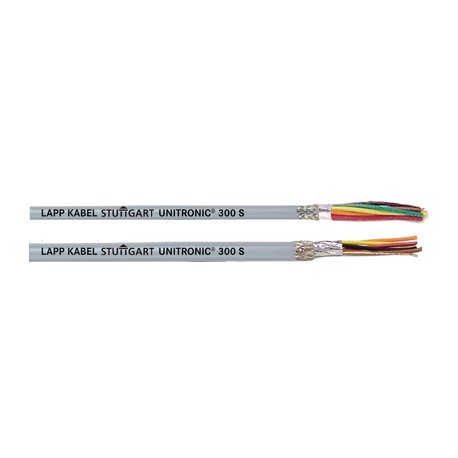

LAPP 301602 301602 UNITRONIC 300 16/2C LAPP UNITRONIC 300 16/2C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

301602 UNITRONIC 300 16/2C LAPP UNITRONIC 300 16/2C

301602

301602

UNITRONIC 300 16/2C

LAPP

1 m.

UNITRONIC 300 16/2C UNITRONIC® 300 / UNITRONIC® 300 S

Cables > Data and communication cable
flexible data cable transfer from special cable

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 301602 UNITRONIC 300 16/2C data cable provides dependable multi-conductor interconnection for general industrial electronics. Multi-core cabling forms the backbone of signal distribution networks in automated manufacturing plants and control rooms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Designation of shielded version: Formerly UNITRONIC® 300 CY, now UNITRONIC® 300 S
  • CAN: c(UL) CMG FT4 [E130334], CSA AWM I/II A/B FT1
  • UNITRONIC® 300 S: with overall foil tape wrapping, drain wire, tin-plated copper braiding (75 % coverage)
  • Outer jacket: Specially Formulated PVC
  • Color of the outer jacket: Dark gray (similar to RAL 7005)
  • During installation: 4 x cable diameter
  • Screened: 6 x outer diameter
  • according to UL: 300 V IEC: not for power transmission
  • Occasional flexing/ North America: -25°C to +105°C (AWM for USA: +80°C)
  • Fixed installation/ North America: -40°C to +105°C (AWM for USA: +80°C)
  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable
  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

More info

▲

UNITRONIC® 300/300 S: unscreened or screened Low-frequency PVC data cable, UL/CSA AWM, CMG, Further Tray Cable listings for Cable tray installation, -25°C/105°C

  • Designation of shielded version:
    Formerly "UNITRONIC® 300 CY",
    now "UNITRONIC® 300 S"
  • Other sizes on request
  • Especially for 20 AWG and 18 AWG: With standard core color code, up to 60 conductors producible/ With non-standard color code, e.g., green-yellow grounding conductor, up to 100 cores

Benefits

  • Wide application range due to multiple certifications
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)

Application range

  • Control and signal cables for internal and external wiring
  • For the North American market
  • On the basis of CMG, PLTC or ITC direct laying on cable tray in the USA, in conjunction with -ER (Exposed Run) for unprotected transition sections with a length of not more than 6 ft. each
  • Thanks to the DIRECT BURIAL approval, direct burial of versions with the nominal conductor cross sections 18 AWG and 16 AWG is normatively permitted in the USA
  • Torsion resistant up to ±150 °/m for the drip loop of wind turbine generators

Product features

  • Oil-resistant according to UL OIL RES I
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / Approvals

  • USA: (UL) CMG [E130334], (UL) PLTC-ER (18 AWG + 16 AWG) [E216027], (UL) PLTC (>24 AWG) [E216027], (UL) ITC-ER (18 AWG + 16 AWG) [E196134], UL AWM Style 2464 [E100338], DIR BUR (18 AWG + 16 AWG)
  • CAN: c(UL) CMG FT4 [E130334], CSA AWM I/II A/B FT1

Product Make-up

  • Fine-wire strand made of tinned-copper wires
  • Core insulation made of PVC compound
  • UNITRONIC® 300 S: with overall foil tape wrapping, drain wire,
    tin-plated copper braiding (75 % coverage)
  • Outer jacket: Specially Formulated PVC
  • Color of the outer jacket: Dark gray (similar to RAL 7005)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Core identification code

  • refer to Appendix T9

Conductor stranding

  • Fine wire

Torsion movement in WTG

  • TW-0 & TW-2, refer to Appendix T0

Minimum bending radius

  • During installation: 4 x cable diameter
  • Screened: 6 x outer diameter

Nominal voltage

  • according to UL: 300 V
    IEC: not for power transmission

Test voltage

  • 1500 V

Temperature range

  • Occasional flexing/ North America: -25°C to +105°C (AWM for USA: +80°C)
  • Fixed installation/ North America: -40°C to +105°C (AWM for USA: +80°C)
