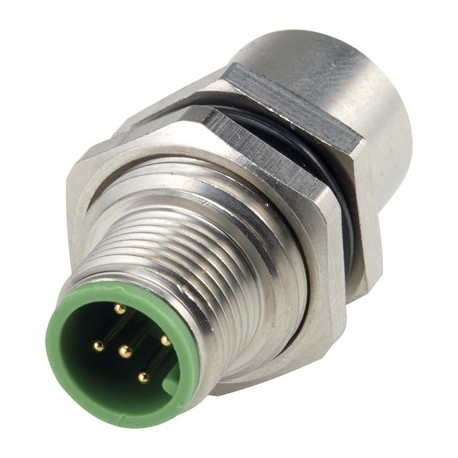

22262020 AB-C5-DSI-M12MS-M12FS-M16-SH LAPP AB-C5-DSI-M12MS-M12FS-M16-SH
22262020
22262020
AB-C5-DSI-M12MS-M12FS-M16-SH
LAPP
1 Pcs.
Cables > Circular connector, mounting (without cable)
Fieldbus Modules passive
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp sensor/actuator control cabinet feed through establishes a secure pass-through connection for data and control signals across enclosure walls. Feed-through components maintain ingress protection while simplifying modular cabling layouts in complex factory automation networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Lapp
- Manufacturer part number: 22262020
- Catalogue title: 22262020 AB-C5-DSI-M12MS-M12FS-M16-SH LAPP AB-C5-DSI-M12MS-M12FS-M16-SH
- Product description: sensor/actuator control cabinet feed through with bipolar/screw mounting (A-coded) Benefits M12 connector on both sides Plug & Play for flexible connection solutions Product features For CANopen/DeviceNet applications Fo
- Manufacturer summary: AB-C5-DSI-M12MS-M12FS-M16-SH EPIC® DATA CAN M12/M12
More info
▲sensor/actuator control cabinet feed through with bipolar/screw mounting (A-coded)
Benefits
- M12 connector on both sides
- Plug & Play for flexible connection solutions
Product features
- For CANopen/DeviceNet applications
- For sensor/actuator cabling
- Bipolar/screw mounting
Product Make-up
- 5-pin control cabinet feed-through, M12 A-coded
- M12 plug on M12 socket
- Screened version
Material
- Contact: CuZn
Contact surface: Au (gold)
Contact carrier: PA 66
Knurl: Nickel-plated brass
Sealing: FKM
Protection rating
- IP 67
Ambient temperature (operation)
- Plug/socket
-25°C to +85°C
Coding
- A - Standard
(CANopen/DeviceNet/CC-Link)
Rated current (A)
- 4 A
