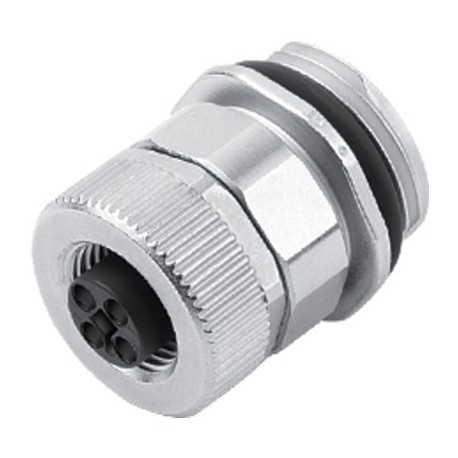

AB-C4-M12MST-M20-PO EPIC® POWER M12 60V flush-type connectors

Cables > Circular connector, mounting (without cable)
Fieldbus Modules passive

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosure-mounted receptacles like the Lapp 22262014 AB-C4-M12MST-M20-PO flush-type connector facilitate reliable plug-and-play integration for industrial instrumentation and control circuits. These bulkhead connectors establish robust interface points on control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • contact durability: > 100
  • UL File Number: E249137
  • 4-pin: bn (1), wh (2), bu (3), bk (4)
  • For screw contacts: 0,75 mm² - 1,5 mm² (AWG 18 - AWG 16)
  • Contact: CuZn Contact surface: Au (gold)
  • ETIM 5.0 Class-ID: EC002061
  • ETIM 5.0 Class-Description: Sensor-actuator connector chassis
  • ETIM 6.0 Class-ID: EC002061
  • ETIM 6.0 Class-Description: Sensor-actuator connector chassis

More info

▲

M12 POWER panel mount connector, front wall-mounting for power transmission to 60 V/12 A with screw connection or connected PVC single wire: 0,2m

DC high-power connector
- 60 VDC / 12 A

Benefits

  • Safety use in field environment by high protection class
  • Compact and standardized M12 design saves space and costs
  • Low voltage drop
  • Fault proof connection through M12 T coding of the connector face

Application range

  • Power Supply for small devices
  • Tool shop
  • Wiring of machines, tools, devices, appliances and control cabinets
  • Suitable for use in measuring, control and regulating circuits

Product features

  • Flush type connector M16, front mounting with pre-assembled stranded wires
  • Flush-type connector M20, front mounting with screw connection
  • contact durability: > 100

Norm references / Approvals

  • UL File Number: E249137

Product Make-up

  • PVC single stranded wires, l = 0.2 m (4x AWG16)
  • 4-pin: bn (1), wh (2), bu (3), bk (4)
  • High quality gold-plated contacts
  • For screw contacts: 0,75 mm² - 1,5 mm² (AWG 18 - AWG 16)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002061
  • ETIM 5.0 Class-Description: Sensor-actuator connector chassis

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002061
  • ETIM 6.0 Class-Description: Sensor-actuator connector chassis

Material

  • Contact: CuZn
    Contact surface: Au (gold)

Protection rating

  • IP 67

Ambient temperature (operation)

  • Plug/socket -40°C to +85°C

Coding

  • T - Power

Rated current (A)

  • 12 A

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
