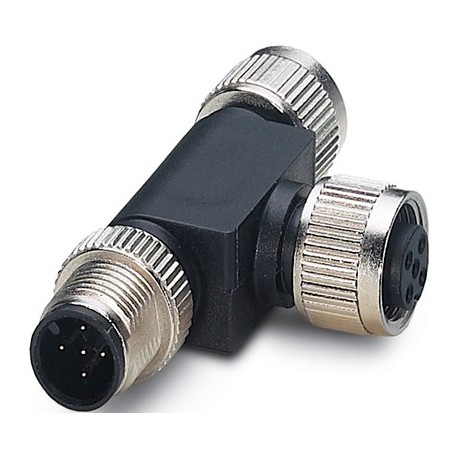

22260765 AB-C5-M12T-2XM12FS DN LAPP AB-C5-M12T-2XM12FS DN
22260765
22260765
AB-C5-M12T-2XM12FS DN
LAPP
5 Pcs.
Cables > Passive sensor-actuator interface (without cable)
Fieldbus Modules passive
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lapp 22260765 is an EPIC DATA CAN M12T passive sensor-actuator interface component designed for industrial fieldbus communication networks. Network splitting components of this nature are typically employed in automation architectures to branch communication lines and link distributed control nodes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ETIM 5.0 Class-ID: EC002585
- ETIM 5.0 Class-Description: Passive sensor-actuator interface
- ETIM 6.0 Class-ID: EC002585
- ETIM 6.0 Class-Description: Passive sensor-actuator interface
More info
▲T-connector M12 as parallel distributor for DeviceNet and CANopen in robust design (IP65/IP67)
Benefits
- Cost-effective, efficient wiring of fieldbus and sensor/ actuator installations
- Space-saving due to compact dimensions
- Robust design
Product features
- For CANopen/DeviceNet applications
- PWIS-free
Product Make-up
- 5-pin parallel distributor
- M12 socket on M12 plug and M12 socket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002585
- ETIM 5.0 Class-Description: Passive sensor-actuator interface
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002585
- ETIM 6.0 Class-Description: Passive sensor-actuator interface
Material
- Contact: CuZn
Contact surface: Ni/Au
Contact carrier: TPU GF
Knurl: Zinc die-cast, nickel-plated
Gripping body: TPU, flame-retardant, self-extinguishing
Sealing: NBR
Protection rating
- IP65/IP67
Ambient temperature (operation)
- Plug/socket -25°C to +90°C
Coding
- A - Standard
(CANopen/DeviceNet/CC-Link)
Rated current (A)
- 4 A
