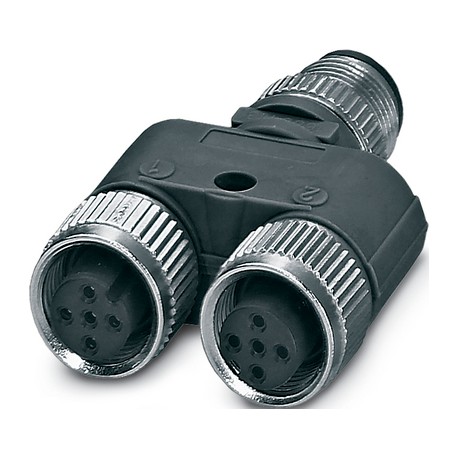

AB-C3-M12Y-2XM12FS E EPIC® SENSOR M8Y M12Y

Automation > Sensor actuator adapter
Fieldbus Modules passive

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A sensor-actuator adapting connector, the Lapp 22260601 AB-C3-M12Y-2XM12FS E provides dependable signal routing and branching capabilities for automated production environments. Such hardware is commonly deployed inside industrial control networks to interconnect distributed sensors and actuators without requiring extensive custom cabling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Design: Plug on 2x socket
  • ETIM 5.0 Class-ID: EC002062
  • ETIM 5.0 Class-Description: Sensor-actuator adapting connector
  • ETIM 6.0 Class-ID: EC002062
  • ETIM 6.0 Class-Description: Sensor-actuator connector

More info

▲

Y-distributer, M12, M8, 3-pole, 4-pole, 5-pole, parallel distributer, bridged, A-coded, IP65/IP67

Benefits

  • Cost-saving due to quick and easy installation
  • Space-saving due to compact dimensions
  • Fast and easy error tracking

Product features

  • Design: Plug on 2x socket
  • M12 design with screw hole
  • PWIS-free

Product Make-up

  • 22260600:
    M12, 3-pin+ PE, straight M12 plug on 2x straight M12 socket, pin 2+4 bridged
  • 22260601:
    M12, 3-pin+ PE, straight M12 plug on 2x straight M12 socket
  • 22260602:
    M12, 5-pin straight M12 plug on 2x 3-pin straight M8 socket, parallel distributor
  • 22260603:
    M8, 4-pin M8 plug on 2x 3pin M8 socket
  • 22260604:
    M8 plug on M8 socket, 3-pin parallel distributor

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002062
  • ETIM 5.0 Class-Description: Sensor-actuator adapting connector

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002062
  • ETIM 6.0 Class-Description: Sensor-actuator connector

Material

  • Contact: CuZn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Protection rating

  • IP65/IP67

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C

Coding

  • A-standard

Rated current (A)

  • 4 A

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
