View larger
Images are for illustrative purposes only. Please refer to data sheet for details

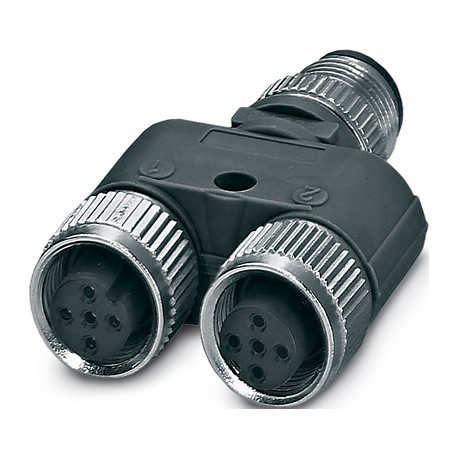

22260600 AB-C3-M12Y-2XM12FS B E LAPP AB-C3-M12Y-2XM12FS B E
22260600
22260600
AB-C3-M12Y-2XM12FS B E
LAPP
5 Pcs.
AB-C3-M12Y-2XM12FS B E
EPIC® SENSOR M8Y M12Y
Automation > Sensor actuator adapter
Fieldbus Modules passive
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Y-distributer, M12, M8, 3-pole, 4-pole, 5-pole, parallel distributer, bridged, A-coded, IP65/IP67
Benefits
- Cost-saving due to quick and easy installation
- Space-saving due to compact dimensions
- Fast and easy error tracking
Product features
- Design: Plug on 2x socket
- M12 design with screw hole
- PWIS-free
Product Make-up
- 22260600:
M12, 3-pin+ PE, straight M12 plug on 2x straight M12 socket, pin 2+4 bridged - 22260601:
M12, 3-pin+ PE, straight M12 plug on 2x straight M12 socket - 22260602:
M12, 5-pin straight M12 plug on 2x 3-pin straight M8 socket, parallel distributor - 22260603:
M8, 4-pin M8 plug on 2x 3pin M8 socket - 22260604:
M8 plug on M8 socket, 3-pin parallel distributor
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002062
- ETIM 5.0 Class-Description: Sensor-actuator adapting connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002062
- ETIM 6.0 Class-Description: Sensor-actuator connector
Material
- Contact: CuZn
Contact surface: Ni/Au
Knurl: Zinc die-cast, nickel-plated
Gripping body: TPU, flame-retardant, self-extinguishing
Protection rating
- IP65/IP67
Ambient temperature (operation)
- Plug/socket -25°C to +90°C
Coding
- A-standard
Rated current (A)
- 4 A
