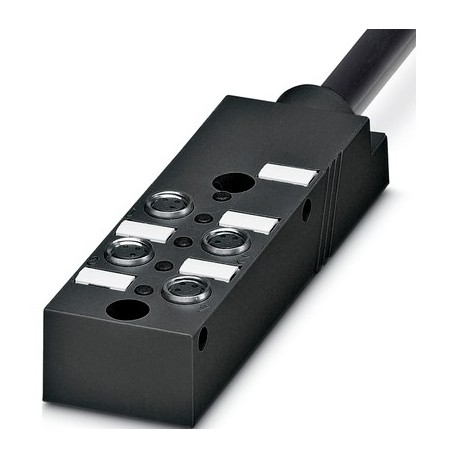

AB-B8-M8L-8-M16 Distribution Box M8

Cables > Passive sensor-actuator interface (without cable)
Fieldbus Modules passive

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 22260036 is a sensor-actuator distribution box built to manage multi-port connections on automated assembly equipment. Distribution modules of this type are routinely installed on plant floors to organize field device wiring, reduce cable clutter, and simplify system maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • E-File number: E75770
  • Core insulation: PVC
  • Outer sheath: PUR, black
  • ETIM 5.0 Class-ID: EC002585
  • ETIM 5.0 Class-Description: Passive sensor-actuator interface
  • ETIM 6.0 Class-ID: EC002585
  • ETIM 6.0 Class-Description: Passive sensor-actuator interface

More info

▲

Passive distribution boxes with M8 slots and fixed installed master cable in a fully sealed housing for a structured wiring of sensors and actuators

Benefits

  • Cost efficient and rational wiring of sensors and actuators
  • Instead of numerous individual conductors,
    one master cable is laid to the control unit
  • Hybrid cable for signal and power transmission
  • There are no assembly costs
    as the master cable
    is already pre-assembled
  • Suitable for drag chains

Product features

  • Single-occupied boxes
  • With fixed master cable or M12/M16 socket
  • LEDs indicate the operating mode of the distributor and the status of the sensors
  • PWIS-free

Norm references / Approvals

  • E-File number: E75770

Product Make-up

  • Core insulation: PVC
  • Outer sheath: PUR, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002585
  • ETIM 5.0 Class-Description: Passive sensor-actuator interface

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002585
  • ETIM 6.0 Class-Description: Passive sensor-actuator interface

Protection rating

  • IP65/IP67

Ambient temperature (operation)

  • -30°C to +80°C
  • Fixed installation -40°C to +90°C
    Flexing -5°C to 80°C

Current rating per slot

  • 2 A

Product Datasheet
