2170476 ETHERLINE Cat. 7 H LAPP ETHERLINE Cat. 7 H
2170476
2170476
ETHERLINE Cat. 7 H
LAPP
100 m.
ETHERLINE Cat. 7 H
ETHERLINE® Cat.7
Cables > Data and communication cable
Etherline Industrial cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Industrial Ethernet cable Cat.7 for fixed installation; halogenfree, PVC or PUR outer sheath, design 4x2xAWG22/1
- Industrial Ethernet cable
- For PROFINET applications with 4 pairs
- Cat.7 qualified for 10Gbit/s
Benefits
- Can be used in dry or damp rooms
- Screened against interference
- Can be used for Industrial Ethernet in harsh industrial environments
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
Application range
- for industrial secondary and tertiary cabling according to EN 50173-3
ISO/IEC 24702 - Wiring of machines, tools, devices, appliances and control cabinets
- max. cable lenght for 100 Mbit/s up to 10 Gbit/s is 100 m
- suitable for EtherCAT and EtherNet/IP applications
Product features
- PUR outer sheath is highly resistant to mineral oils and abrasion
- Robust, halogen-free outer sheath
- The oil-resistant PVC sheath enables usage in industrial environments
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

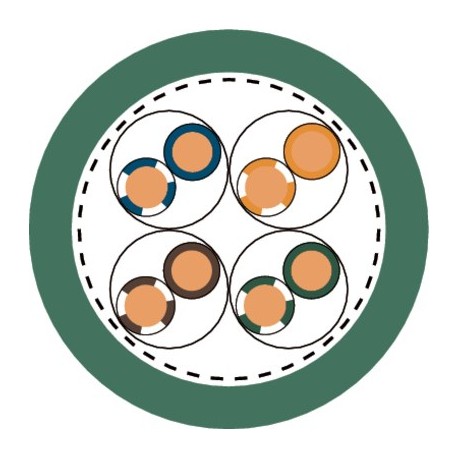

Product Make-up
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- Colour: green (based on RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 10 x outer diameter
Characteristic impedance
- 100 ohm at 1 - 100 MHz
Temperature range
- Cable with PVC jacket
Fixed installation: -30°C to +80°C
Flexing: -5°C bis +50°C - cable halogenfree compound
Fixed installation: -25°C to +80°C
