View larger
Images are for illustrative purposes only. Please refer to data sheet for details
2170466 ETHERLINE Cat. 6A H LAPP ETHERLINE Cat. 6A H
2170466
2170466
ETHERLINE Cat. 6A H
LAPP
100 m.
ETHERLINE Cat. 6A H
ETHERLINE® Cat.6
Cables > Data and communication cable
Etherline Industrial cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Industrial Ethernet cable Cat.6A for fixed installation; halogenfree, PVC or PUR outer sheath, design 4x2xAWG22/1
- CPR: Article number choice under www.lappkabel.com/cpr
- For PROFINET applications with 4 pairs
- CAT.6Aqualified for 10Gbit/s
Benefits
- Can be used in dry or damp rooms
- Screened against interference
- Can be used for Industrial Ethernet in harsh industrial environments
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
Application range
- for industrial secondary and tertiary cabling according to EN 50173-3
ISO/IEC 24702 - Wiring of machines, tools, devices, appliances and control cabinets
- suitable for EtherCAT and EtherNet/IP applications
Product features
- PUR outer sheath is highly resistant to mineral oils and abrasion
- Robust, halogen-free outer sheath
- The oil-resistant PVC sheath enables usage in industrial environments
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

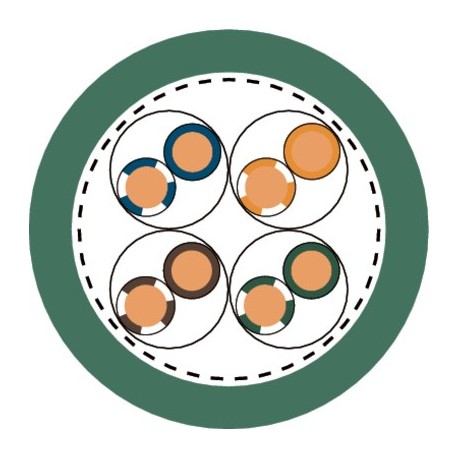

Product Make-up
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0/6.0 Class-ID: EC000830
- ETIM 5.0/6.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 10 x outer diameter
Characteristic impedance
- 100 Ω ± 5 Ohm (> 1 MHz)
Temperature range
- Cable with PUR sheath
Fixed installation: -40°C to +80°C - Cable, halogen-free outer sheath
Fixed installation: -25°C to +80°C
Cable with PVC sheath
Fixed installation: -30°C to +80°C
