2170431 ETHERLINE P EC FLEX Cat.5e LAPP ETHERLINE P EC FLEX Cat.5e
2170431
2170431
ETHERLINE P EC FLEX Cat.5e
LAPP
500 m.
Cables > Data and communication cable
Etherline Industrial cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a Lapp 2170431 ETHERLINE P EC FLEX Cat.5e data cable, this network link enables high-speed Industrial Ethernet communication between automation controllers, sensors, and field devices. Overall screening ensures data integrity in electromagnetically noisy factory environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
- Core insulation: PE
- insulation colour-codes: orange/white-orange; green/white-green
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Colour: green (based on RAL 6018)
- Fixed installation: 4 x outer diameter
- Flexing: 8 x outer diameter
- Cable with PVC jacket Fixed installation: -30°C to +80°C Flexing: -5°C bis +50°C
- Cable with PUR jacket Fixed installation: -40°C to +80°C Flexing:-30°C to +50°C
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
More info
▲The LAN cable is suitable for Ethernet in demanding industrial environments and features a space-saving design. It can be used in wet and dry premises.
- For EtherCAT applications
- Cat.5e-Performance
- Only for patch cable applications
(max. 60 m)
Benefits
- Can be used for Industrial Ethernet in harsh industrial environments
- Can be used in dry or damp rooms
- Lower space requirement
Application range
- suitable for EtherCAT and EtherNet/IP applications
- For flexible applications
(7-wire stranded conductor) - Many applications with Industrial Ethernet, i.e. fixed installation and flexible use.
- For internal wiring of electric and electronic equipment in switch cabinets
- Only for patch cable applications
(max. 60 m)
Product features
- PUR (Polyurethane) Version with increased robustness, UV- resistance and halogen free
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
Norm references / Approvals
- Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
- Flame-retardant according to UL VW1/CSA FT1

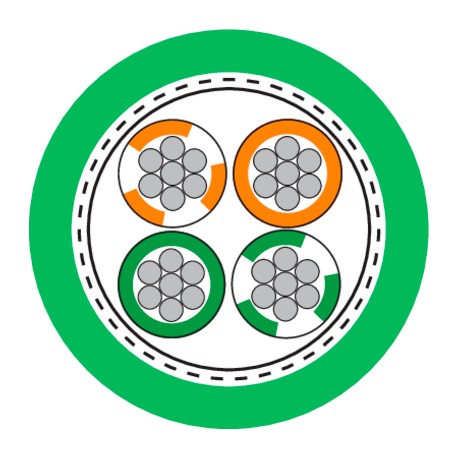

Product Make-up
- Stranded tinned 7-wire conductor
- Core insulation: PE
- insulation colour-codes: orange/white-orange; green/white-green
- Star quad
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- PVC or PUR jacket material
- Colour: green (based on RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Fixed installation: 4 x outer diameter
- Flexing: 8 x outer diameter
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- Cable with PVC jacket
Fixed installation: -30°C to +80°C
Flexing: -5°C bis +50°C - Cable with PUR jacket
Fixed installation: -40°C to +80°C
Flexing:-30°C to +50°C
