LAPP 2170430 2170430 ETHERLINE Y EC FLEX Cat.5e LAPP ETHERLINE Y EC FLEX Cat.5e View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2170430 ETHERLINE Y EC FLEX Cat.5e LAPP ETHERLINE Y EC FLEX Cat.5e

2170430

2170430

ETHERLINE Y EC FLEX Cat.5e

LAPP

500 m.

ETHERLINE Y EC FLEX Cat.5e

Cables > Data and communication cable
Etherline Industrial cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The LAN cable is suitable for Ethernet in demanding industrial environments and features a space-saving design. It can be used in wet and dry premises.

  • For EtherCAT applications
  • Cat.5e-Performance
  • Only for patch cable applications
    (max. 60 m)

Benefits

  • Can be used for Industrial Ethernet in harsh industrial environments
  • Can be used in dry or damp rooms
  • Lower space requirement

Application range

  • suitable for EtherCAT and EtherNet/IP applications
  • For flexible applications
    (7-wire stranded conductor)
  • Many applications with Industrial Ethernet, i.e. fixed installation and flexible use.
  • For internal wiring of electric and electronic equipment in switch cabinets
  • Only for patch cable applications
    (max. 60 m)

Product features

  • PUR (Polyurethane) Version with increased robustness, UV- resistance and halogen free
  • High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

Norm references / Approvals

  • Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
  • Flame-retardant according to UL VW1/CSA FT1

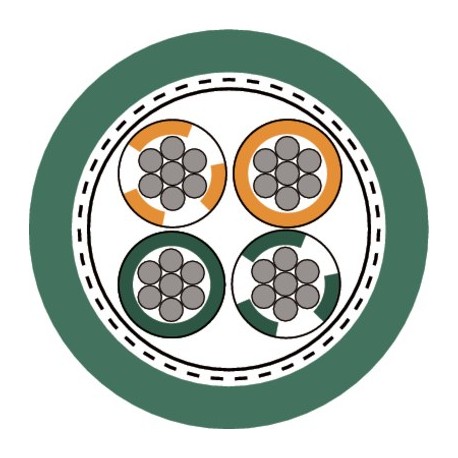

Product Make-up

  • Stranded tinned 7-wire conductor
  • Core insulation: PE
  • insulation colour-codes: orange/white-orange; green/white-green
  • Star quad
  • SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
  • PVC or PUR jacket material
  • Colour: green (based on RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Peak operating voltage

  • max. 100 V (not for power applications)

Minimum bending radius

  • Fixed installation: 4 x outer diameter
  • Flexing: 8 x outer diameter

Characteristic impedance

  • nom. 100 Ω acc. to IEC 61156-5

Temperature range

  • Cable with PVC jacket
    Fixed installation: -30°C to +80°C
    Flexing: -5°C bis +50°C
  • Cable with PUR jacket
    Fixed installation: -40°C to +80°C
    Flexing:-30°C to +50°C
