View larger
2170298 ETHERLINE H-H CAT.5e 4X2XAWG24/1 LAPP ETHERLINE H-H CAT.5e 4X2XAWG24/1
2170298
2170298
ETHERLINE H-H CAT.5e 4X2XAWG24/1
LAPP
100 m.
Cables > Data and communication cable
Etherline Industrial cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lapp 2170298 ETHERLINE H-H CAT.5e 4X2XAWG24/1 data cable is designed for high-performance Industrial Ethernet communication in rugged factory settings. Robust data cables ensure stable bandwidth and minimal packet loss across networked industrial automation hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- cables with PUR jacket: 1000 V UL- rating for installation next to power cables
- 2pair: 10/100 Mbit/s for Industrial Ethernet
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
- PUR versions: UL AWM Style 21576
- Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
- PUR cables: halogenfree acc. to VDE 0472-815
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Colour: water blue (similar to RAL 5021)
- Fixed installation: 7.5 x outer diameter
- Fixed installation: 8 x outer diameter (4 pair cable)
- Core/core: 1000 V
- Core/screen: 500 V
- Fixed installation: -30°C to +80°C
- During installation: -5°C to +50°C
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
More info
▲Industrial Ethernet cable Cat.5e for fixed installation; halogenfree or PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG24/1
- Industrial Ethernet cable
- Cat.5e
Benefits
- Seamless communication from the sensor/actuator level to the Internet
- Screened against interference
- Can be used in dry or damp rooms
- Can be used for Industrial Ethernet in harsh industrial environments
- cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Application range
- 2pair: 10/100 Mbit/s for Industrial Ethernet
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
- suitable for EtherCAT and EtherNet/IP applications
- Industrial use
- Fixed Installation
Product features
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
- PUR outer sheath is highly resistant to mineral oils and abrasion
- Halogen-free outer sheath
Norm references / Approvals
- PUR versions: UL AWM Style 21576
- Flame retardant acc. to IEC 60332-1-2
- Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
- PUR cables: halogenfree acc. to VDE 0472-815

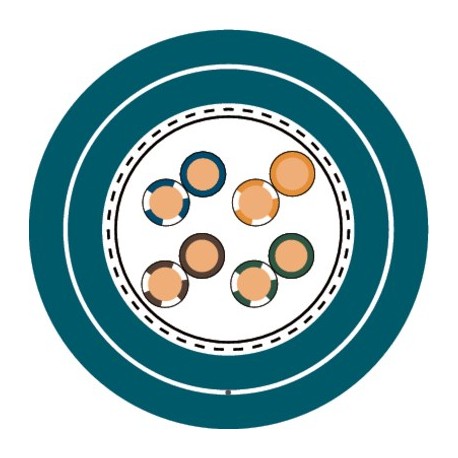

Product Make-up
- Solid conductor
- Core insulation made of foam skin
- 2 or 4-pair version
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Outer sheath as either PUR or LSZH
- Colour: water blue (similar to RAL 5021)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 7.5 x outer diameter
- Fixed installation: 8 x outer diameter (4 pair cable)
Test voltage
- Core/core: 1000 V
- Core/screen: 500 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- Fixed installation: -30°C to +80°C
- During installation: -5°C to +50°C
