View larger
Images are for illustrative purposes only. Please refer to data sheet for details
2170296 ETHERLINE H CAT.5e4X2XAWG24/1 LAPP ETHERLINE H CAT.5e4X2XAWG24/1
2170296
2170296
ETHERLINE H CAT.5e4X2XAWG24/1
LAPP
100 m.
ETHERLINE H CAT.5e4X2XAWG24/1
ETHERLINE® Cat.5e
Cables > Data and communication cable
Etherline Industrial cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Industrial Ethernet cable Cat.5e for fixed installation; halogenfree or PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG24/1
- Industrial Ethernet cable
- Cat.5e
Benefits
- Seamless communication from the sensor/actuator level to the Internet
- Screened against interference
- Can be used in dry or damp rooms
- Can be used for Industrial Ethernet in harsh industrial environments
- cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Application range
- 2pair: 10/100 Mbit/s for Industrial Ethernet
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
- suitable for EtherCAT and EtherNet/IP applications
- Industrial use
- Fixed Installation
Product features
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
- PUR outer sheath is highly resistant to mineral oils and abrasion
- Halogen-free outer sheath
Norm references / Approvals
- PUR versions: UL AWM Style 21576
- Flame retardant acc. to IEC 60332-1-2
- Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
- PUR cables: halogenfree acc. to VDE 0472-815

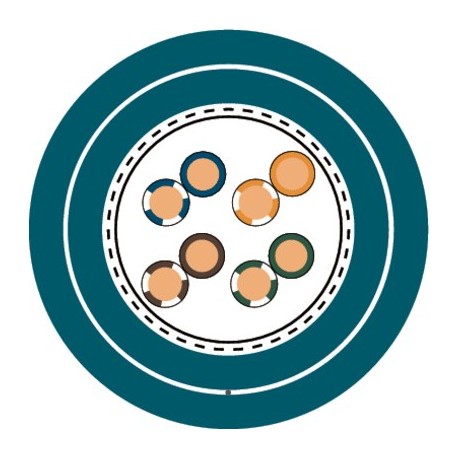

Product Make-up
- Solid conductor
- Core insulation made of foam skin
- 2 or 4-pair version
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Outer sheath as either PUR or LSZH
- Colour: water blue (similar to RAL 5021)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 7.5 x outer diameter
- Fixed installation: 8 x outer diameter (4 pair cable)
Test voltage
- Core/core: 1000 V
- Core/screen: 500 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- Fixed installation: -30°C to +80°C
- During installation: -5°C to +50°C
