View larger

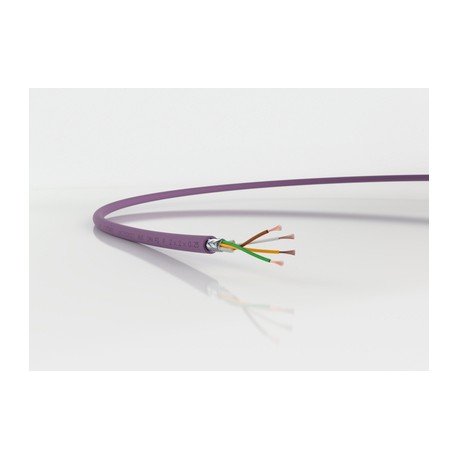

2170272 UNITRONIC BUS CAN FD P 1X2X0,25 LAPP UNITRONIC BUS CAN FD P 1X2X0,25
2170272
2170272
UNITRONIC BUS CAN FD P 1X2X0,25
LAPP
1 m.
Cables > Data and communication cable
UNITRONIC BUS cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 2170272 UNITRONIC BUS CAN FD P 1X2X0,25 data cable is engineered for high-speed fieldbus networks in factory automation, supporting reliable communication between distributed machine controllers and sensors. This specialized bus line handles continuous movement applications seamlessly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Maximum bit rate: 1 Mbit/s for 40 m segment length
- Core insulation: foam skin
- Outer sheath: PUR, violet (RAL 4001)
- (loop): max. 159.8 ohm/km
- Flexing: 15 x outer diameter
- Core/core: 1500 V rms
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +70°C
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
More info
▲For CAN based communication systems like CANopen. Halogen free, flame retardant acc. to IEC 60332-1-2, temperature range from -40°C bis +80°C
Application range
- For highly flexible applications
Product features
- Halogen-free
- Maximum bit rate: 1 Mbit/s for 40 m
segment length - Larger conductor cross-section is necessary with increasing length. Refer to the table below (reference values from ISO 11898).
- ISO 11898 makes recommendations for the segment length, cable cross section and bit rate
- Flame-retardant according IEC 60332-1-2
Norm references / Approvals
- Standardised internationally in ISO 11898
- UL/CSA type CMX (UL 444)
Product Make-up
- Stranded bare conductor
- Core insulation: foam skin
- Copper braid
- Outer sheath: PUR, violet (RAL 4001)
- UV-resistant (but colour may change after some time)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- (800 Hz) max. 40 nF/km
Peak operating voltage
- 250 V (not for power transmission)
Conductor resistance
- (loop): max. 159.8 ohm/km
Minimum bending radius
- Flexing: 15 x outer diameter
Test voltage
- Core/core: 1500 V rms
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +70°C
