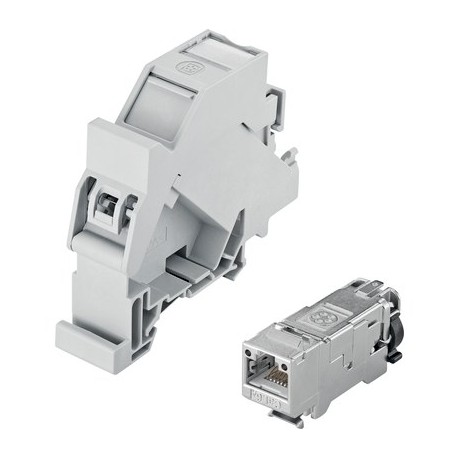

LAPP 21700614 21700614 EPIC DATA HS RJ45 F 10G B LAPP EPIC DATA HS RJ45 F 10G B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

21700614 EPIC DATA HS RJ45 F 10G B LAPP EPIC DATA HS RJ45 F 10G B

21700614

21700614

EPIC DATA HS RJ45 F 10G B

LAPP

1 Pcs.

EPIC DATA HS RJ45 F 10G B EPIC

Connectors > Modular connector
EPIC DATA Copper

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 21700614 EPIC DATA HS RJ45 F 10G B LAPP EPIC DATA HS RJ45 F 10G B manufactured by Lapp is a modular connector designed for high-speed industrial data communication. These connectors are integrated into control panels and machinery to ensure reliable, high-bandwidth Ethernet connections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour: light grey (RAL 7035)
  • ETIM 5.0 Class-ID: EC001121
  • ETIM 5.0 Class-Description: Modular connector
  • ETIM 6.0 Class-ID: EC001121
  • ETIM 6.0 Class-Description: Modular connector

More info

▲

The mounting rail adapter is suitable for use on industrial premises. It ensures integrated strain relief for cables with an outer diameter of up to 9 mm.

Product features

  • Plastic housing including RJ45 coupler
  • Suitable for use in industrial applications
  • Colour: light grey (RAL 7035)
  • Suitable for stranded cores with AWG27/7 -22/7 and for solid conductors with AWG26/1- 22/1

Norm references / Approvals

  • RJ45 according to IEC 60603-7-51

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001121
  • ETIM 5.0 Class-Description: Modular connector

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001121
  • ETIM 6.0 Class-Description: Modular connector

Protection rating

  • IP 20

Ambient temperature (operation)

  • -40°C to +70°C
