21700569 ED-PB-90-PG-FO-SMA-650 LAPP ED-PB-90-PG-FO-SMA-650
21700569
21700569
ED-PB-90-PG-FO-SMA-650
LAPP
1 Pcs.
ED-PB-90-PG-FO-SMA-650
EPIC® DATA PB Sub-D FO
Connectors > D-Sub connector
EPIC DATA Copper
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

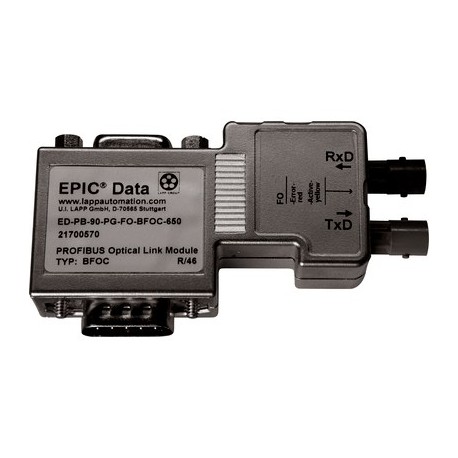

▲Data Connector D-Sub (9-pin.) for PROFIBUS DP according to IEC 61158, IEC 61784, with optical interface and repeater functionality and optical fiber interface (POF and PCF)
PROFIBUS repeater with integrated optical interface
Benefits
- Easy covering of large distances (PCF 250 m / POF 65 m)
- Cost-efficient due to quick installation (Plug & Play)
- Galvanic isolation in case of potential differences within PROFIBUS network
- For EMC critical environments
- Integrated repeater functionality: Regeneration of data signal (slope, power and mark-to-space ratio)
Product features
- max. distance:
POF fiber: 65 m
PCF fiber: 250 m - Diagnostic LEDs (blue, green, red, yellow)
- Bus termination is integrated
- Current consumption typ. 100 mA
- Supply voltage 5.0 V DC
(supplied from the terminal)
Norm references / Approvals
- IEC 61158, IEC 61784
Product Make-up
- D-Sub plug, 9-pin, fixing screws 4-40 UNC
- Improved electromagnetic compatibility (EMC) by metallized housing
- Versions with additional Sub-D interface for programming/diagnostic ('PG')
- An external 24 V supply is not necessary
- Connection for optical cable (POF or PCF)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001132
- ETIM 5.0 Class-Description: D-Sub connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001132
- ETIM 6.0 Class-Description: D-Sub connector
Dimensions
- 64 mm x 40 mm x 17 mm (LxWxH)
Protection rating
- IP 20
Interfaces
- Sub-D socket, 9-pin
Fibre optic cable: POF / PCF, 650 nm
Permissble ambient conditions
- Operating temperature: 0°C to +60°C
