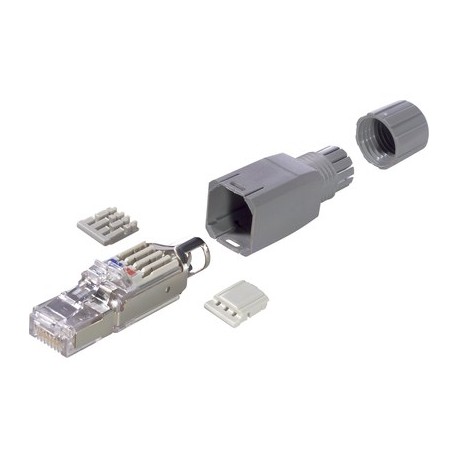

LAPP 21700540 21700540 FM45 LAPP Field-Terminable Conn. RJ45 CAT.5e FM 45 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

21700540 FM45 LAPP Field-Terminable Conn. RJ45 CAT.5e FM 45

21700540

21700540

FM45

LAPP

1 Pcs.

Field-Terminable Conn. RJ45 CAT.5e FM 45

Connectors > Modular connector
EPIC DATA Copper

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 21700540 field-terminable RJ45 connector allows technicians to create customized network cables directly on-site in industrial environments. Field-attachable plugs support rapid maintenance and custom-length cabling without requiring specialized factory assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Lapp
  • Manufacturer part number: 21700540
  • Catalogue title: 21700540 FM45 LAPP Field-Terminable Conn. RJ45 CAT.5e FM 45
  • Product description: The make-up connector with shielding is suitable for usage in industrial premises and for solid core conductor and wire. It is resistant against vibrations. Product features Screened version Suitable for AWG 23 - 26, AWG
  • Manufacturer summary: Field-Terminable Conn. RJ45 CAT.5e FM 45

More info

▲

The make-up connector with shielding is suitable for usage in industrial premises and for solid core conductor and wire. It is resistant against vibrations.

Product features

  • Screened version
  • Suitable for AWG 23 - 26, AWG 22 possible with restrictions
  • IDC/piercing terminal according to 60352-4
  • Suitable for solid and stranded conductors
  • Suitable for use in industrial applications

Classification

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Protection rating

  • IP 20

Ambient temperature (operation)

  • -20°C to +70°C
