21700537 ED-CAN-90 LAPP ED-CAN-90
21700537
21700537
ED-CAN-90
LAPP
1 Pcs.
ED-CAN-90
EPIC® DATA CAN Sub-D
Connectors > D-Sub connector
EPIC DATA Copper
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

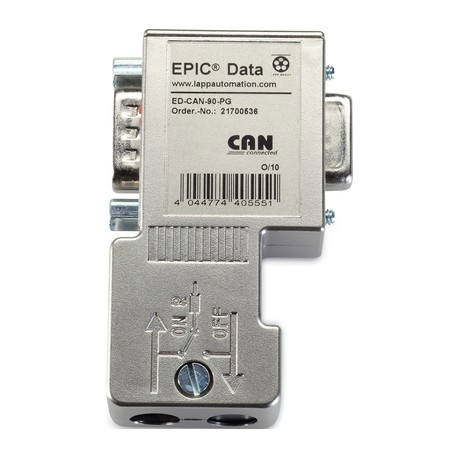

▲CAN BUS Sub-D connector, screw terminals, integrated bus termination, optional LED diagnostic/interfaces, cable outlet 35°/90°/180°
Benefits
- Terminating resistor (integrated) can be switched
- sensor/ ac
- No loose parts
- With additional 24 V DC output to supply external devices (90° version only)
Product features
- Max. transmission rate 1 Mbit/s possible
- Terminating resistor "ON" - the outbound bus cable is disconnected
- The integrated, connectable terminating resistor
enable the CAN-Bus to be terminated or connected through - Sub-D pin assignment:
CAN Low = Pin 2
CAN High = Pin 7
CAN Gnd = Pin 3
GND = Pin 6 (90° version only)
CAN V+ = Pin 9 (90° version only)
(shield = housing)
Norm references / Approvals
- UL File No. E331560
Product Make-up
- D-Sub plug, 9-pin, fixing screws 4-40 UNC
- Screw connection
- Improved electromagnetic compatibility (EMC) by metallized housing
- For cable outer diameter: 5 - 8 mm
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001132
- ETIM 5.0 Class-Description: D-Sub connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001132
- ETIM 6.0 Class-Description: D-Sub connector
Dimensions
- 60 mm x 40 mm x 17 mm - 90°
67,5 mm x 35 mm x 17 mm - 180° - (LxWxH)
Connection type
- Screwing
Protection rating
- IP 20
Terminating resistor
- 120 Ω
Interfaces
- CAN bus station:
D-Sub socket, 9-pin
CAN bus cable:
6 terminal blocks for wires up to 0.8 mm²
Permissble ambient conditions
- Operating temperature: -25°C to +85°C
- *The max. temperature for UL is 60 °C
