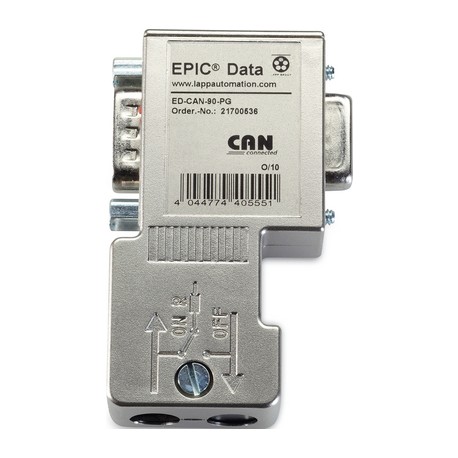

LAPP 21700536 21700536 ED-CAN-90-PG LAPP ED-CAN-90-PG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

21700536 ED-CAN-90-PG LAPP ED-CAN-90-PG

21700536

21700536

ED-CAN-90-PG

LAPP

1 Pcs.

ED-CAN-90-PG EPIC® DATA CAN Sub-D

Connectors > D-Sub connector
EPIC DATA Copper

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A D-Sub connector, cataloged under Lapp part number 21700536, acts as a dedicated interface termination for CAN bus networks deployed in industrial automation. Such hardware components ensure secure signal routing between programmable controllers and peripheral machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For cable outer diameter: 5 - 8 mm
  • CAN bus station: D-Sub socket, 9-pin CAN bus cable: 6 terminal blocks for wires up to 0.8 mm²
  • Operating temperature: -25°C to +85°C
  • ETIM 5.0 Class-ID: EC001132
  • ETIM 5.0 Class-Description: D-Sub connector
  • ETIM 6.0 Class-ID: EC001132
  • ETIM 6.0 Class-Description: D-Sub connector

More info

▲

CAN BUS Sub-D connector, screw terminals, integrated bus termination, optional LED diagnostic/interfaces, cable outlet 35°/90°/180°

Benefits

  • Terminating resistor (integrated) can be switched
  • sensor/ ac
  • No loose parts
  • With additional 24 V DC output to supply external devices (90° version only)

Product features

  • Max. transmission rate 1 Mbit/s possible
  • Terminating resistor "ON" - the outbound bus cable is disconnected
  • The integrated, connectable terminating resistor
    enable the CAN-Bus to be terminated or connected through
  • Sub-D pin assignment:
    CAN Low = Pin 2
    CAN High = Pin 7
    CAN Gnd = Pin 3
    GND = Pin 6 (90° version only)
    CAN V+ = Pin 9 (90° version only)
    (shield = housing)

Norm references / Approvals

  • UL File No. E331560

Product Make-up

  • D-Sub plug, 9-pin, fixing screws 4-40 UNC
  • Screw connection
  • Improved electromagnetic compatibility (EMC) by metallized housing
  • For cable outer diameter: 5 - 8 mm

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001132
  • ETIM 5.0 Class-Description: D-Sub connector

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001132
  • ETIM 6.0 Class-Description: D-Sub connector

Dimensions

  • 60 mm x 40 mm x 17 mm - 90°
    67,5 mm x 35 mm x 17 mm - 180°
  • (LxWxH)

Connection type

  • Screwing

Protection rating

  • IP 20

Terminating resistor

  • 120 Ω

Interfaces

  • CAN bus station:
    D-Sub socket, 9-pin
    CAN bus cable:
    6 terminal blocks for wires up to 0.8 mm²

Permissble ambient conditions

  • Operating temperature: -25°C to +85°C
  • *The max. temperature for UL is 60 °C
