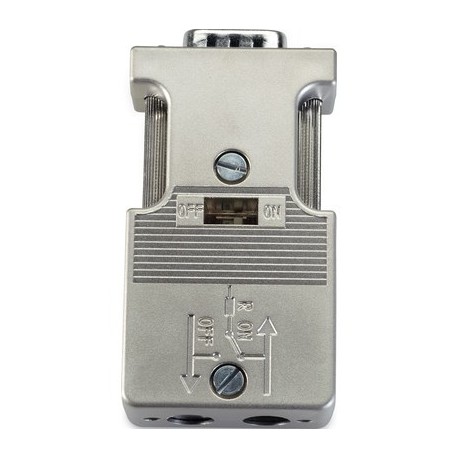

21700530 ED-PB-90-LED LAPP ED-PB-90-LED
21700530
21700530
ED-PB-90-LED
LAPP
1 Pcs.
Connectors > D-Sub connector
EPIC DATA Copper
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lapp 21700530 ED-PB-90-LED serves as an angular D-Sub connector designed for streamlined cable routing in control cabinets and automation stations. Fieldbus connectors provide reliable physical connections and diagnostic visualization for complex communication architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REPEATER version: Regeneration of data signal (slope, power and mark-to-space ratio)
- ATEX version: DIN EN 60079-0:2006, DIN 60079-15:2005 (category 3G zone 2)
- For cable outer diameter: 5 – 8 mm / M12 B-coded cordsets
- LED Version indicate: bus operation - (green) station transmission - (blue) terminating resistor "on" - (orange)
- Operating temperature: -25°C to +85°C
- ETIM 5.0 Class-ID: EC001132
- ETIM 5.0 Class-Description: D-Sub connector
- ETIM 6.0 Class-ID: EC001132
- ETIM 6.0 Class-Description: D-Sub connector
More info
▲PROFIBUS Sub-D connector, screw terminals, integrated bus termination, optional LED diagnostic/interfaces, cable outlet 35°/90°/180°
- Optional with LED diagnostic
- M12 and REPEATER version
- Versions with 2nd Sub-D interface
Benefits
- Easy connection with tried-and-tested M12 / screw terminal technology
- sensor/ ac
- Terminating resistor (integrated) can be switched
- REPEATER version: Regeneration of data signal
(slope, power and mark-to-space ratio) - ATEX version: For use within intrinsically-safe circuits in zone 2 areas with an explosion hazard (explosive gas atmosphere occurs only rarely and briefly)
Product features
- Max. transmission rate 12 Mbit/s possible
- Current consumption max. 12,5 mA
(with LED 35 mA / REPEATER 100 mA) - Supply voltage 4.75 - 5.25 V DC
(supplied from the terminal) - Terminating resistor "ON" - the outbound bus cable is disconnected
- REPEATER version: Easy extension of the PROFIBUS network:
- up to 3 repeaters
- 1 additional PROFIBUS segment
- galvanic isolation
Norm references / Approvals
- IEC 61158, IEC 61784
- UL File No. E331560
- ATEX version: DIN EN 60079-0:2006, DIN 60079-15:2005 (category 3G zone 2)
Product Make-up
- D-Sub plug, 9-pin, fixing screws 4-40 UNC
- Improved electromagnetic compatibility (EMC) by metallized housing
- Versions with additional Sub-D interface for programming/diagnostic ('PG')
- For cable outer diameter: 5 – 8 mm / M12 B-coded cordsets
- LED Version indicate:
bus operation - (green)
station transmission - (blue)
terminating resistor "on" - (orange)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001132
- ETIM 5.0 Class-Description: D-Sub connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001132
- ETIM 6.0 Class-Description: D-Sub connector
Dimensions
- 54 mm x 40 mm x 17 mm - 35°
64 mm x 40 mm x 17 mm - 90°
68 mm x 40 mm x 17 mm - 180°
70 mm x 40 mm x 17 mm - M12 - (LxWxH)
Connection type
- Screwing
- M12
Protection rating
- IP 20
Terminating resistor
- 150 Ω
Interfaces
- Sub-D socket, 9-pin
Terminal blocks up to 1.0 mm² /M12 B-coded
Permissble ambient conditions
- Operating temperature: -25°C to +85°C
- *The max. temperature for UL is 60 °C
