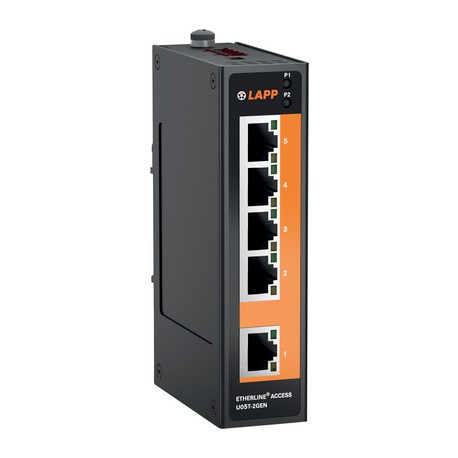

21700123 LAPP ETHERLINE ACCESS U05T-2GEN
21700123
21700123
LAPP
1 unit
Automation > Networks+Wireless active
Networks+Wireless active
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a dependable communication node, this Lapp 21700123 Etherline Access U05T-2Gen mains switch coordinates Ethernet traffic among machine sensors, actuators, and supervisory control systems in automated plants. Industrial switches provide the structural backbone required for seamless machine-to-machine data exchange. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RJ45 ports: 10/100 BaseT(X)
- RJ45 ports: 10/100/1000 BaseT(X)
- Buffer packet size: min. 1Mbit
- Redundant voltage supply: 24 VDC
- ETIM 5.0 Class-ID: EC000734
- ETIM 5.0 Class-Description: mains switch
- ETIM 6.0 Class-ID: EC000734
- ETIM 6.0 Class-Description: mains switch
More info
▲Industrial network switches for Ethernet-based solutions in Smart Factories.
- Redundant voltage supply
- Robust metal housing and DIN profile mount
proceeds
- Improve total operating costs with faster installation and shorter downtime
- The most flexible solutions available globally from the same provider
Product features
- RJ45 ports: 10/100 BaseT(X)
- RJ45 ports: 10/100/1000 BaseT(X)
- Buffer packet size: min. 1Mbit
- Broadcast storm protection
- Redundant voltage supply: 24 VDC
Reference Standards / Approvals
- UL 61010
- Shock IEC 60068-2-27
- Free fall IEC60068-2-32
- Vibration IEC 60068-2-6
ETS Classification 5
- ETIM 5.0 Class-ID: EC000734
- ETIM 5.0 Class-Description: mains switch
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000734
- ETIM 6.0 Class-Description: mains switch
Power supply
- DC 24 V (18-30 V DC)
Degree of protection:
- IP 30
Temperature range
- -10°C to +60°C
