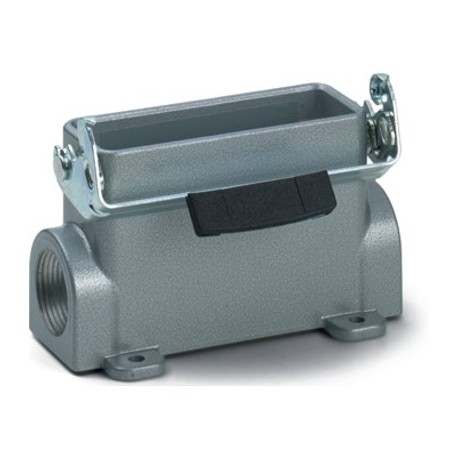

19568000 H-A 16 SGRL M25 ZW. SOCKELGEHAEUSE LAPP H-A 16 SGRL M25 ZW. SOCKELGEHAEUSE
19568000
19568000
H-A 16 SGRL M25 ZW. SOCKELGEHAEUSE
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protecting heavy-duty electrical connections, the Lapp 19568000 H-A 16 SGRL M25 ZW. SOCKELGEHAEUSE surface mount base houses matched connector inserts. Base housings anchor wiring looms securely to equipment frames while offering stable latching points for mating hoods. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The base metal housing consists of a single lever and two cable entries. It can be used, for example, in control systems.
- For easy introduction of two cables
- Protection rating UL50E tested
Benefits
- Small and compact, for applications with high number of contacts
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Surface-mount base
- Single lever
- 2 cable entries
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
