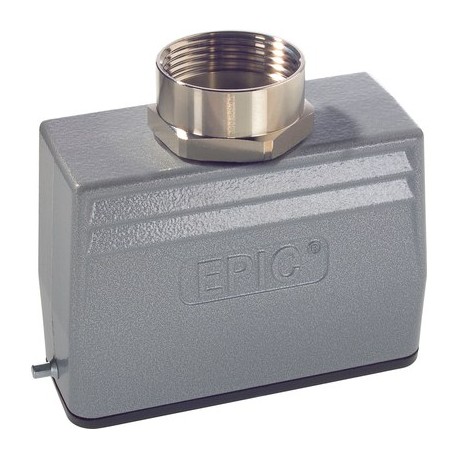

LAPP 19565300 19565300 EPIC H-A 16 TG M25 N.GEW. HOOD LAPP EPIC H-A 16 TG M25 N.GEW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19565300 EPIC H-A 16 TG M25 N.GEW. HOOD LAPP EPIC H-A 16 TG M25 N.GEW. HOOD

19565300

19565300

EPIC H-A 16 TG M25 N.GEW. HOOD

LAPP

5 Pcs.

EPIC H-A 16 TG M25 N.GEW. HOOD EPIC® H-A 16 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing extra internal clearance for complex wiring layouts, the Lapp 19565300 EPIC H-A 16 TG M25 N.GEW. HOOD is a high-version housing for industrial connectors. High-profile connector hoods offer expanded space for dense wire configurations and thick conductors, shielding critical electrical junctions from mechanical impacts and environmental contaminants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • High version: More interior space for wiring
  • Housing: powder-coated aluminium alloy, grey
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust hood intended for rectangular connectors is suitable for applications requiring a high number of contacts.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested
  • High version: More interior space for wiring

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Hood, low version
  • Bolts for single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
