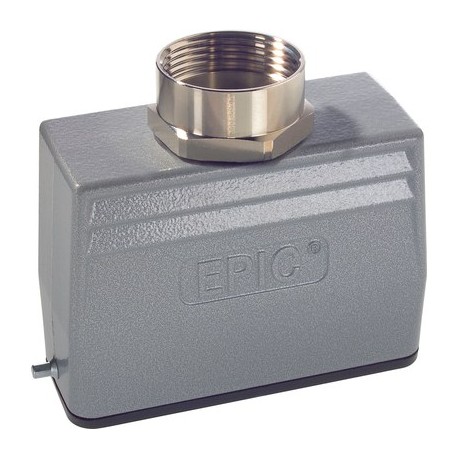

LAPP 19565000 19565000 EPIC H-A 16 TG M20 N.GEW. HOOD LAPP EPIC H-A 16 TG M20 N.GEW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19565000 EPIC H-A 16 TG M20 N.GEW. HOOD LAPP EPIC H-A 16 TG M20 N.GEW. HOOD

19565000

19565000

EPIC H-A 16 TG M20 N.GEW. HOOD

LAPP

5 Pcs.

EPIC H-A 16 TG M20 N.GEW. HOOD EPIC® H-A 16 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 19565000 EPIC H-A 16 TG M20 N.GEW. HOOD is an expanded industrial connector housing built to provide generous interior space for complex wiring terminations while shielding them from external hazards. High-version protective hoods are commonly utilized in machinery and switchgear systems where additional cable clearance is necessary. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • High version: More interior space for wiring
  • Housing: powder-coated aluminium alloy, grey
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust hood intended for rectangular connectors is suitable for applications requiring a high number of contacts.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested
  • High version: More interior space for wiring

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Hood, low version
  • Bolts for single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
