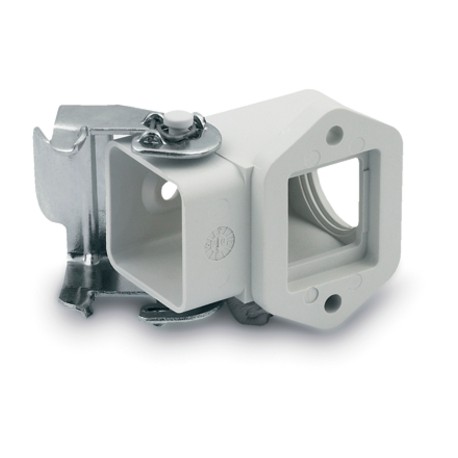

LAPP 19517200 19517200 H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O. LAPP H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19517200 H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O. LAPP H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O.

19517200

19517200

H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O.

LAPP

10 Pcs.

H-A 3 MAGSV M20 N.GEW. BOX MT BASE. U.O. EPIC® H-A 3 AGSV open bottom

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to facilitate surface-mounted cabling setups, this Lapp 19517200 H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O. LAPP H-A 3 MAGSV M20 N.GEW. SOCKELGEH. U.O. functions as a housing for industrial connectors. Surface bases offer stable attachment points for modular connectors across factory switchboards and machinery panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing type: with open base
  • Included: flat gasket
  • Housing: powder-coated zinc die-casting, grey Lever: zinc-plated steel Sealing: NBR
  • Housing: grey thermoplastic, black Lever: zinc-plated steel Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust housing with an open bottom and 2 cable entries can be used in control systems or other applications in restricted spaces.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version. For power supply in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • 1 lever
  • 2 cable entries
  • Housing type: with open base
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
