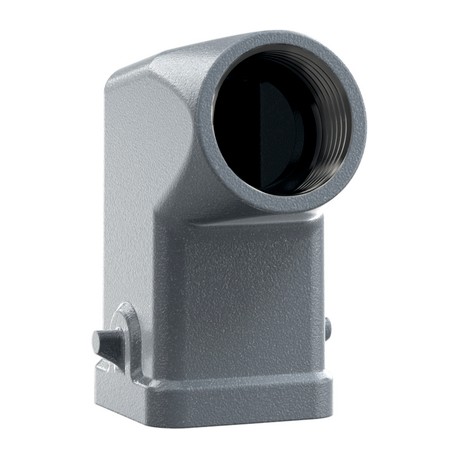

19512300 H-A 3 MTS M20 N.GEW. HOOD LAPP H-A 3 MTS M20 N.GEW. HOOD
19512300
19512300
H-A 3 MTS M20 N.GEW. HOOD
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to protect vital wiring junctions, this Lapp 19512300 H-A 3 MTS M20 N.GEW. HOOD LAPP H-A 3 MTS M20 N.GEW. HOOD acts as a housing for industrial connectors. Protective connector hoods shield mated pin and socket inserts from dust, moisture, and physical impact in demanding industrial factory environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated zinc die-casting, grey Lever: zinc-plated steel
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The compact metal housing is ideal for use in control systems and for supplying power in restricted spaces.
- Small, rugged metal housing
- Protection rating UL50E tested
Benefits
- Housing in plastic or metal version for safe connections in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Hood
- Bolts for single lever
- Side cable entry
- Versions with / without cable gland
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated zinc die-casting, grey
Lever: zinc-plated steel
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
