View larger
Images are for illustrative purposes only. Please refer to data sheet for details

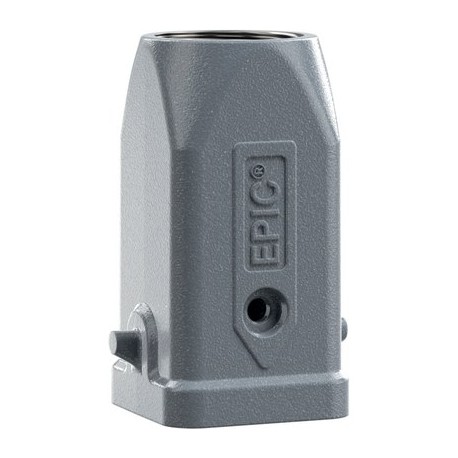

19512100 EPIC H-A 3 MTGV M20 N.GEW. HOOD LAPP EPIC H-A 3 MTGV M20 N.GEW. HOOD
19512100
19512100
EPIC H-A 3 MTGV M20 N.GEW. HOOD
LAPP
10 Pcs.
EPIC H-A 3 MTGV M20 N.GEW. HOOD
EPIC® H-A 3 MTG
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The compact, robust metal housing is ideal for use with a rectangular connector and for supplying power in restricted spaces.
- Small, rugged metal housing
- Protection rating UL50E tested
Benefits
- Housing in plastic or metal version for safe connections in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Hood
- Bolts for single lever
- Straight cable entry
- Versions with / without cable gland
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated zinc die-casting, grey
Lever: zinc-plated steel
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
