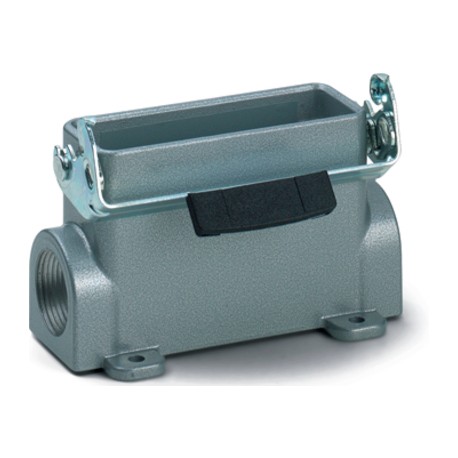

19448100 H-A 10 SGR M20 ZW. BOX MOUNT BASE LAPP H-A 10 SGR M20 ZW. BOX MOUNT BASE
19448100
19448100
H-A 10 SGR M20 ZW. BOX MOUNT BASE
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a secure surface mounting point, the Lapp 19448100 H-A 10 SGR M20 ZW. BOX MOUNT BASE organizes and protects heavy-duty connector interfaces on machine enclosures. Box mount bases establish fixed receptacle points for complex wiring assemblies entering control panels and industrial automation machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust compact metal housing is ideal for use in rectangular connectors, for example in electronic laboratories.
Protection rating UL50E tested
Benefits
- Small and space-saving for narrow available space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Surface-mount base
- Single lever
- 1 cable entry
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
