View larger

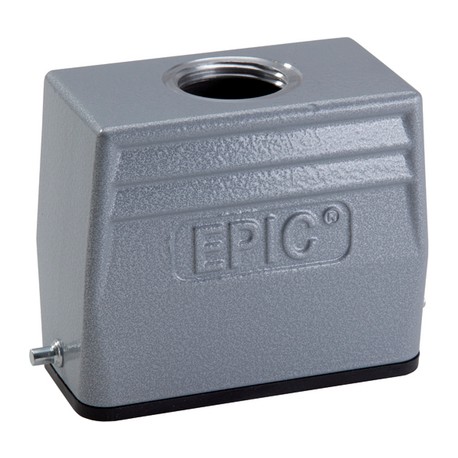

19446000 EPIC H-A 10 TG M20 LAPP EPIC H-A 10 TG M20
19446000
19446000
EPIC H-A 10 TG M20
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An enlarged-capacity connector hood encloses high-density contact blocks, providing extra clearance for complex wire harnesses inside heavy machinery. It shields delicate terminals from dust, debris, and physical impacts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- High version: More interior space for wiring
- Housing: aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The low hood has pivots for a single lever and a direct cable entry. It is suitable for use in electronic laboratories.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
- High version: More interior space for wiring
Benefits
- Small and space-saving for narrow available space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Hood, low version
- Bolts for single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
