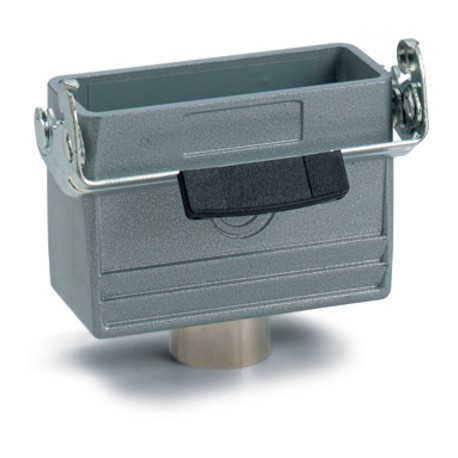

LAPP 19439000 19439000 EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD LAPP EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19439000 EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD LAPP EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD

19439000

19439000

EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD

LAPP

5 Pcs.

EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD EPIC® H-A 10 TBF-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 19439000 EPIC H-A 10 TBF M20 N.GEW. CPL. HOOD is a complete industrial connector housing assembly configured to protect multi-conductor plug inserts in commercial machinery. Pre-packaged housing sets simplify procurement and installation for panel builders and maintenance crews. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact housing for rectangular connectors has a direct cable entry and can be ordered with or without a neck. The low housing has 1 single lever.

Protection rating UL50E tested

Benefits

  • Small and space-saving for narrow available space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Cable coupler hood, low version
  • Single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
