19429200 H-A 3 TGVB M20 N.GEW. CPL. HOOD LAPP H-A 3 TGVB M20 N.GEW. CPL. HOOD
19429200
19429200
H-A 3 TGVB M20 N.GEW. CPL. HOOD
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

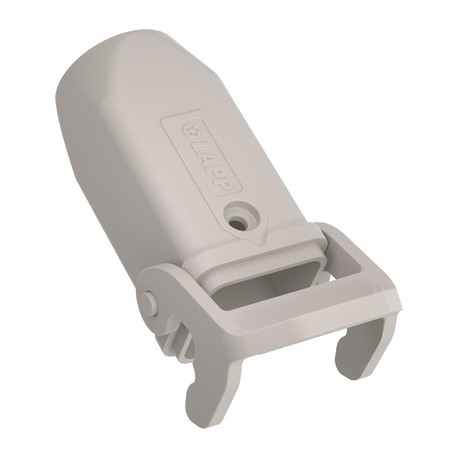

Designed as a compact top-entry connector hood, the Lapp 19429200 H-A 3 TGVB M20 N.GEW. CPL. HOOD shelters modular wiring blocks inside electrical enclosures. Connector hoods maintain secure locking engagement and prevent environmental ingress on localized automation components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- thermoplastic, grey, black
- Lever: zinc-plated steel
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust plastic cable coupler hood for rectangular connectors with a direct cable entry and one lever is ideal for use in control systems.
- Lightweight, chemically resistant plastic housing
- Protection rating UL50E tested
Benefits
- Housing in plastic or metal version. For power supply in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Cable coupler hood
- 1 lever
- Straight cable entry
- Versions with / without cable gland
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- thermoplastic, grey, black
Lever: zinc-plated steel
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
