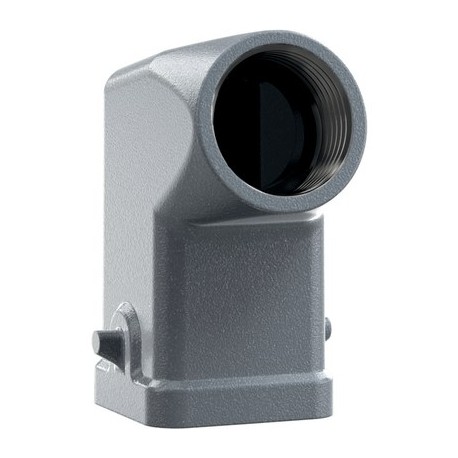

LAPP 19427500 19427500 H-A 3 MTS M20 KPL. HOOD LAPP H-A 3 MTS M20 KPL. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19427500 H-A 3 MTS M20 KPL. HOOD LAPP H-A 3 MTS M20 KPL. HOOD

19427500

19427500

H-A 3 MTS M20 KPL. HOOD

LAPP

10 Pcs.

H-A 3 MTS M20 KPL. HOOD EPIC® H-A 3 MTS

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a protective hood for industrial connectors, part number 19427500 by Lapp safeguards internal cable terminations against environmental hazards. Connector hoods route cables cleanly out of plug-in assemblies while maintaining an environmental seal on factory automation lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact metal housing is ideal for use in control systems and for supplying power in restricted spaces.

  • Small, rugged metal housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Hood
  • Bolts for single lever
  • Side cable entry
  • Versions with / without cable gland

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
