Product Overview

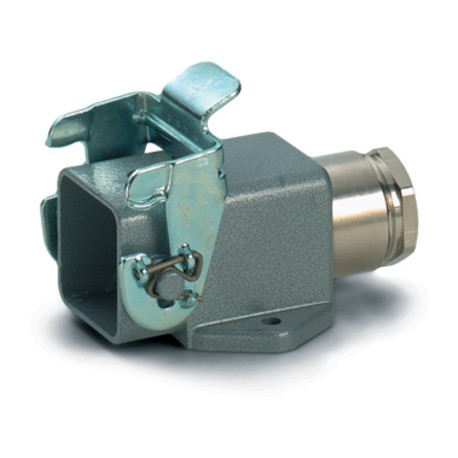

Providing a reliable mounting foundation for industrial cabling, the Lapp 19424500 H-A 3 MAGSV M20 KPL. BOX MOUNT BASE securely anchors connector inserts while protecting internal terminations from dust and moisture. Base enclosures of this variety are widely integrated into control cabinets, machinery frames, and distribution boxes to maintain stable electrical connections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Housing: grey thermoplastic, black
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust compact base housing consists of one lever and a cable entry and is ideal for supplying power in restricted spaces.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • 1 lever
  • 1 cable entry
  • Versions with / without cable gland

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
