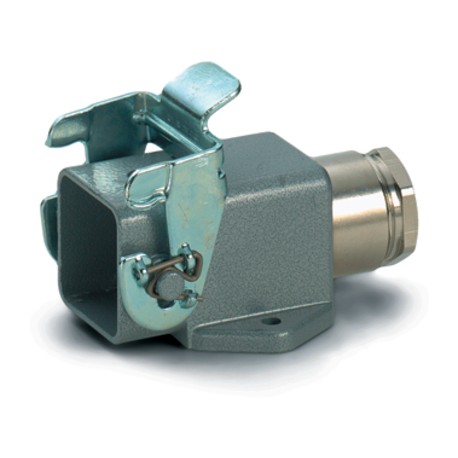

LAPP 19421900 19421900 H-A 3 AGSV M20 KPL. BOX MOUNT BASE LAPP H-A 3 AGSV M20 KPL. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19421900 H-A 3 AGSV M20 KPL. BOX MOUNT BASE LAPP H-A 3 AGSV M20 KPL. BOX MOUNT BASE

19421900

19421900

H-A 3 AGSV M20 KPL. BOX MOUNT BASE

LAPP

10 Pcs.

H-A 3 AGSV M20 KPL. BOX MOUNT BASE EPIC® H-A 3 AGSV

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a reliable surface-mounting junction, the Lapp 19421900 H-A 3 AGSV M20 KPL. BOX MOUNT BASE is an industrial connector housing designed to protect internal contact blocks on machine frames. These compact bases provide secure cable entry and stable connection points for industrial control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Housing: grey thermoplastic, black
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust compact base housing consists of one lever and a cable entry and is ideal for supplying power in restricted spaces.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • 1 lever
  • 1 cable entry
  • Versions with / without cable gland

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
