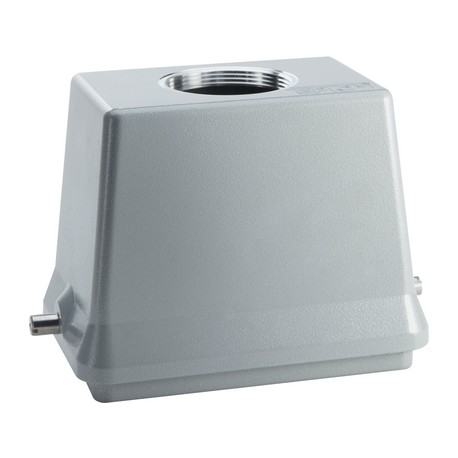

LAPP 19156000 19156000 EPIC H-B 48 TG M40 LAPP EPIC H-B 48 TG M40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19156000 EPIC H-B 48 TG M40 LAPP EPIC H-B 48 TG M40

19156000

19156000

EPIC H-B 48 TG M40

LAPP

1 Pcs.

EPIC H-B 48 TG M40 EPIC® H-B 48 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 19156000 EPIC H-B 48 TG M40 industrial connector housing encloses critical wiring connections, ensuring they remain secure against ambient contamination and mechanical strain. Heavy-duty enclosures of this scale are typically utilized in large-scale industrial machinery, power generation setups, and complex manufacturing lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • The large, robust housing for two inserts in one connector. Power and data in a single connector

Application range

  • Plant engineering
  • Plastics industry

Product features

  • Hood
  • Bolts for single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

Temperature range

  • -40°C to +100°C, short-term up to +125°C
