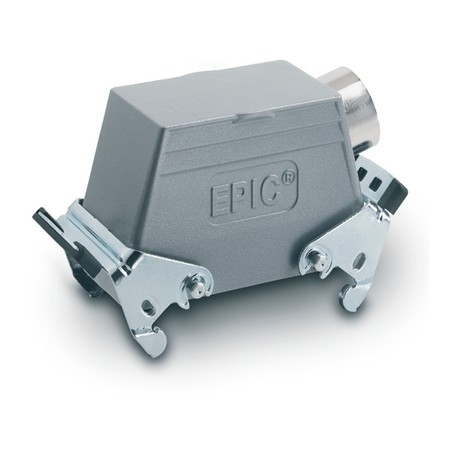

LAPP 19124000 19124000 EPIC H-B 24 TSB M32 ZW. HOOD LAPP EPIC H-B 24 TSB M32 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19124000 EPIC H-B 24 TSB M32 ZW. HOOD LAPP EPIC H-B 24 TSB M32 ZW. HOOD

19124000

19124000

EPIC H-B 24 TSB M32 ZW. HOOD

LAPP

5 Pcs.

EPIC H-B 24 TSB M32 ZW. HOOD EPIC® H-B 24 TSB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for expansive cabling layouts, the Lapp 19124000 EPIC h-b 24 tsb m32 zw. hood provides a spacious housing structure for complex industrial connectors. These connector hoods protect multi-core wiring junctions on large machinery and control cabinets against mechanical wear and fluid exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust metal housing with 2 double levers, a side cable entry and a neck is suitable for use in investment construction.

  • Non-slip ridges for comfortable disconnecting
  • For connection with counterpart with integrated cover
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts
  • Double lever version with 2 levers for increased safety

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Dual levers
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
